Combine stripping and crimping in one efficient step with the Wire Stripping and Crimping Machine WPM-2008A2. This machine automates both processes, streamlining wire preparation and terminal attachment. Ideal for faster production and reduced manual handling. Integrate stripping and crimping for efficient wire termination!

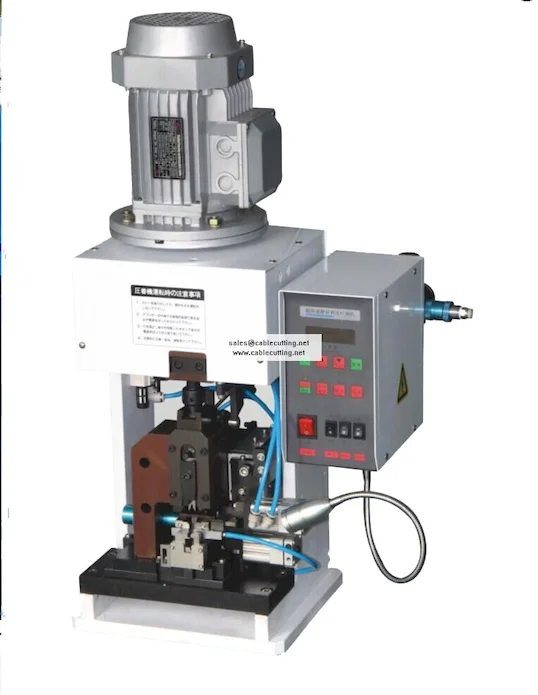

The WPM-2008A2 Automatic Crimp Strip Machineis a highly versatile and efficient solution designed for a wide range of wire processing needs. This machine excels in both DC/AC terminal crimping and the processing of multi-core sheathed cables, offering both automatic and semi-automatic functionalities to streamline your production.
For standard wire stripping and terminal crimping, the WPM-2008A2 utilizes an integrated one-time cassette mold holder and skinning system to achieve a seamless and coherent motion. Built with high-precision parts assembly and an advanced tuning screw adjustment method, it ensures exceptional accuracy. The machine incorporates Japanese SMC pneumatic components with a stable magnetic clutch for reliable, energy-saving, and quiet operation. Its high-quality electrical system further guarantees consistent and steady performance.
Furthermore, the WPM-2008A2 also functions as a Semi-Automatic stripping crimping machine specifically designed for processing the inner core wires of multi-conductor sheathed cables and single wires. By simply changing the crimping applicator, it can adapt to various terminal types.
Key Features and Advantages:
Integrated Wire Stripping and Crimping (Single Wire): Completes both wire stripping and terminal crimping in one efficient cycle using a cassette mold system.
High Precision: Achieves accurate stripping and crimping thanks to high-precision parts and tuning screw adjustments.
Energy-Saving & Quiet Operation: Features Japanese SMC pneumatic components with a stable magnetic clutch for efficient and silent performance.
Steady Electrical System: Ensures consistent and reliable operation.
Semi-Automatic Processing of Sheathed Cables: Specifically designed for stripping and crimping the inner cores of multi-conductor sheathed cables in one go.
Advanced Frequency Conversion Technology: Offers energy-saving and environmentally friendly operation for sheathed cable processing.
High-Speed & Accurate Positioning (Sheathed Cables): Utilizes a stripping cylinder drive for fast and precise positioning of inner cores.
Clean Workspace: Features vacuum suction to remove stripping waste from the work area.
Adjustable Working Speed: Allows operators to adjust the processing speed via the operation panel.
Versatile Terminal Compatibility: Easily adapts to different terminals by changing the crimping applicator.
Detailed Functionality:
For Standard Wire and Terminal Crimping: The WPM-2008A2 automatically strips the insulation from the wire and then precisely crimps the terminal using the integrated cassette mold holder and skinning system. The SMC pneumatic components ensure smooth and efficient operation, while the tuning screw allows for fine-tuning the stripping length and crimping position for optimal results.
For Multi-Core Sheathed Cable Processing: In its semi-automatic mode, the machine is designed to strip the outer sheath of multi-core cables and then simultaneously strip and crimp the inner core wires. The advanced frequency conversion technology ensures efficient energy usage. The stripping cylinder drive provides high-speed and accurate positioning of the inner cores for precise processing. The vacuum suction system effectively removes the stripped waste, maintaining a clean and organized work environment. The adjustable working speed allows operators to adapt the machine's pace to their skill level and the specific requirements of the task.
Applications:
This versatile machine is ideal for a wide range of applications, including:
Crimping DC and AC terminals onto single wires.

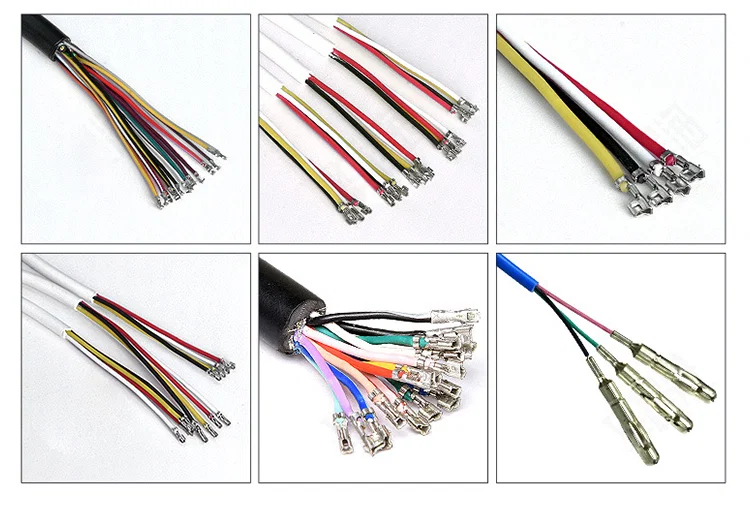

Processing multi-core sheathed cables for various electrical connections.
Manufacturing wire harnesses for electronics and appliances.
Automotive wiring applications.
Industrial control systems.
And any other application requiring efficient and precise wire stripping and terminal crimping for both single wires and multi-core sheathed cables.
Why Choose the WPM-2008A2 Automatic Crimp Strip Machine?
The WPM-2008A2 offers a comprehensive and efficient solution for various wire processing needs. Its ability to handle both standard terminal crimping on single wires and the specialized processing of multi-core sheathed cables in one machine makes it a highly versatile and cost-effective investment. The integration of advanced technologies like SMC pneumatics and frequency conversion ensures reliable, energy-saving, and high-quality performance.
Technical Specifications (Model WPM-2008A2):
Operation: Automatic (for single wire) / Semi-Automatic (for sheathed cable)
Functionality (Single Wire): Wire Stripping and Terminal Crimping
Working Speed (Sheathed Cable): Adjustable via Operation Panel
Measurement: W410×L460×H420MM
Power Supply: (Specify if known)
Compressed Air: (Specify if known)
Crimping Force: (Specify if known)
Stripping Length (Single Wire): (Specify if known)
Stripping Accuracy (Single Wire): (Specify if known)
Crimping Accuracy (Single Wire): (Specify if known)
Wire Capacity: (Specify if known)
Production Capacity: (Specify if known)
Contact Us Today for a Quote!
Streamline your wire processing with the versatile and efficient WPM-2008A2 Automatic Crimp Strip Machine. Contact us today to learn more and request a personalized quote. Please specify your specific wire processing requirements for accurate recommendations.
