Multi-Core Sheathed Cable Stripping and Ferrule Crimping Machine WPM-32
Multi-Core Sheathed Cable Stripping and Ferrule Crimping Machine WPM-32
  • Multi-Core Sheathed Cable Stripping and Ferrule Crimping Machine WPM-32

  • Model No: WPM-32

  • Strip multi-core sheathed cables and crimp ferrules with the Multi-Core Sheathed Cable Stripping and Ferrule Crimping Machine. This machine combines stripping and ferrule crimping for multi-core sheathed cables, providing efficient and protected terminations. Ideal for multi-core sheathed cable processing and ferrule protection. Integrate stripping and ferrule crimping for efficient multi-core sheathed cable termination!

  • Inquiry now
Detailed description

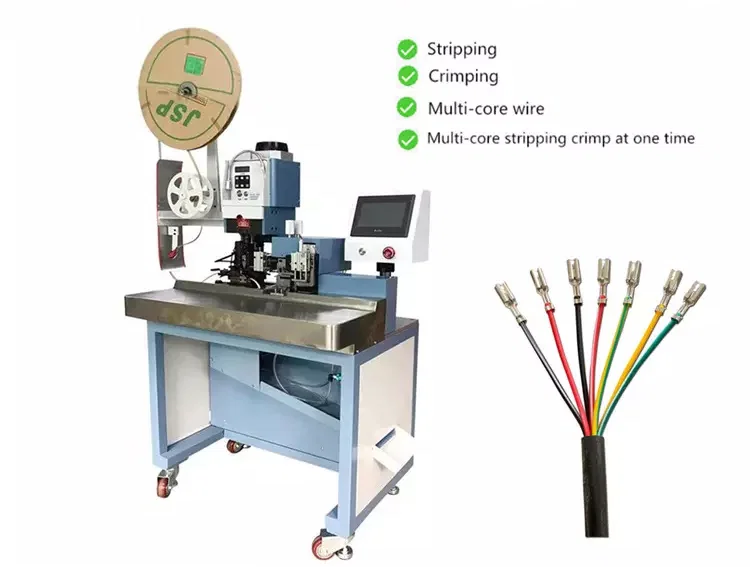

Automatic Multi-Core Sheathed Cable Stripping & Ferrules Crimping Machine with Touch Screen Control (Model WPM-32)

The WPM-32 Multi-core Sheathed Cable Stripping and Ferrules Crimping Machine is a highly advanced and efficient solution specifically designed for processing the inner core wires of multi-conductor sheathed cables. This machine automates the process of inner core stripping and ferrule crimping with exceptional accuracy and speed, significantly improving production efficiency. Please note that the outer jacket of the cable needs to be pre-stripped before using this machine.

Incorporating advanced frequency conversion technology and intelligent control, the WPM-32 offers quieter operation and reduces power consumption by up to 50% compared to traditional terminal machines. Its quick and convenient mold installation further enhances usability, while eliminating common faults associated with traditional machines like clutches and electromagnets. This machine ensures accurate and continuous wire feeding, inner core stripping, and terminal crimping.

Key Features and Advantages:

  • Specifically Designed for Multi-Core Cables: Ideal for processing the inner cores of multi-conductor sheathed cables (outer jacket pre-stripping required).
  • Automated Inner Core Stripping & Ferrule Crimping: Completes wire feeding, inner core stripping, and ferrule crimping accurately and continuously.
  • Advanced Frequency Conversion Technology: Ensures quieter operation and reduces power consumption significantly.
  • Intelligent Control System: Provides precise and reliable processing.
  • Quick and Convenient Mold Installation: Simplifies setup and reduces downtime.
  • Eliminates Common Traditional Machine Faults: Designed without clutches and electromagnets for enhanced reliability.
  • PLC and Color Touch Screen Control: Offers simple operation and easy parameter adjustment.
  • Servo Motor Driven Moving Parts: Ensures high processing accuracy and stable performance.
  • High Productivity: Achieves a processing speed of up to 3600 pieces per hour (depending on wire type).
  • Wide Range of Applicable Cables: Suitable for multiple conductor cables and flat cables with outer diameters from 1.3 to 32 mm.
  • Adjustable Stripping Length: Stripping length depends on the conductor size, offering flexibility for various applications.

Detailed Functionality:

The WPM-32 Multi-core Sheathed Cable Stripping and Ferrules Crimping Machine automates the process of preparing the inner cores of multi-conductor cables for termination. After the outer jacket of the cable is pre-stripped, the operator simply places the cable in the designated working position. The machine then automatically takes over, feeding the cable, precisely stripping the insulation from the inner core wires, and securely crimping ferrules onto the wire ends. The entire process is managed by a user-friendly PLC control system accessed through a color touch screen interface. Servo motors drive the moving parts, ensuring smooth, accurate, and repeatable operation.

Applications:

This machine is widely used in industries that manufacture products with multi-conductor sheathed cables requiring inner core stripping and ferrule termination, such as:

  • Appliance manufacturing
  • Automotive wiring harnesses
  • Industrial control systems
  • Electronic equipment assembly
  • And various other electrical and electronic applications

Why Choose the WPM-32 Multi-core Sheathed Cable Stripping & Ferrules Crimping Machine?

The WPM-32 offers a significant upgrade in efficiency and reliability for processing multi-core sheathed cables. Its automated inner core stripping and ferrule crimping capabilities, combined with advanced technology for quieter and more energy-efficient operation, make it a superior choice over traditional terminal machines. The user-friendly touch screen interface and servo motor driven parts ensure high accuracy and ease of use, leading to increased productivity and reduced operational costs.

Model WPM-32 Specifications:

  • Cable Type: Multiple conductor cable, flat cable, etc.
  • Cable Outer Diameter: 1.3 - 32 mm (0.052 - 1.259 inches) (larger cable can be customized)
  • Conductor Size: 30 - 16 AWG
  • Conductor Numbers: 2 - 20 (depending on the cable type)
  • Stripping Length: Depends on conductor size
  • Crimping Force: 1.5 T
  • Applicator: OTP
  • Productivity: 3600 pcs. /h (depending on the wire type)
  • Power Supply: 110, 220 V (50 - 60 Hz)
  • Power: 750 W
  • Dimension (L * W * H): 800 * 600 * 1250 mm (31.50 * 23.62 * 49.21 inches)
  • Net Weight: 145 kg (319.67 lb)

Contact Us Today for a Quote!

Optimize your multi-core cable processing with the WPM-32 Automatic Stripping and Crimping Machine. Contact us today to learn more and request a personalized quote. Please specify your preferred voltage (110V or 220V) when inquiring.
