Automate winding and binding processes with the Automatic Winding and Binding Machine WPM-RT-81T. This machine automates both winding and binding for various materials, providing efficient packaging and organized bundles. Ideal for automated winding and binding applications and high-volume production. Streamline your winding and binding process with automated technology for efficient packaging!

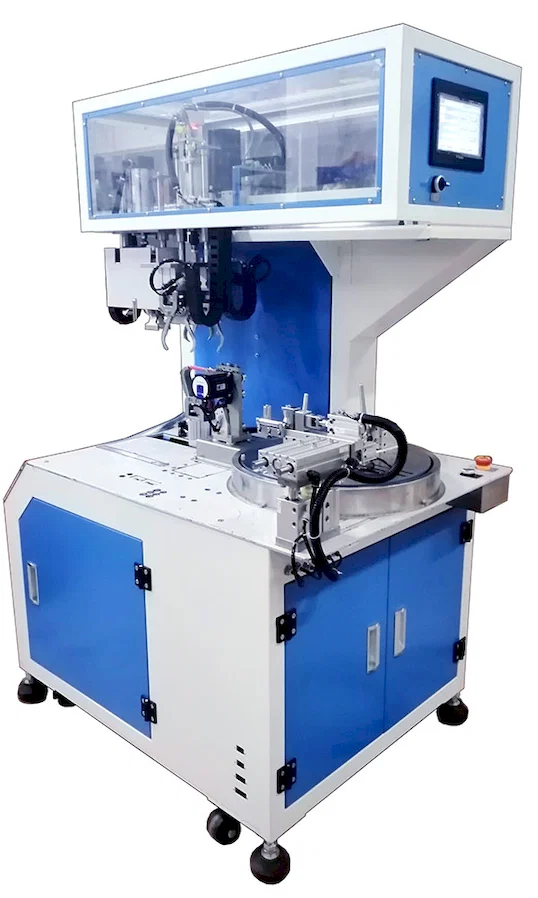

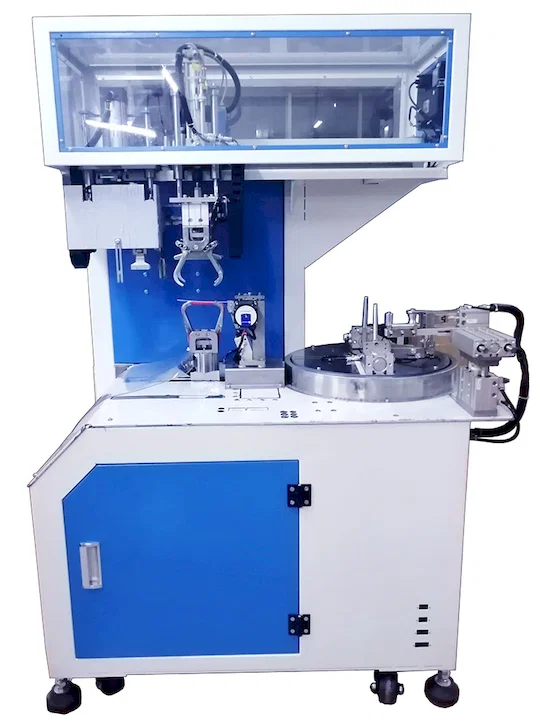

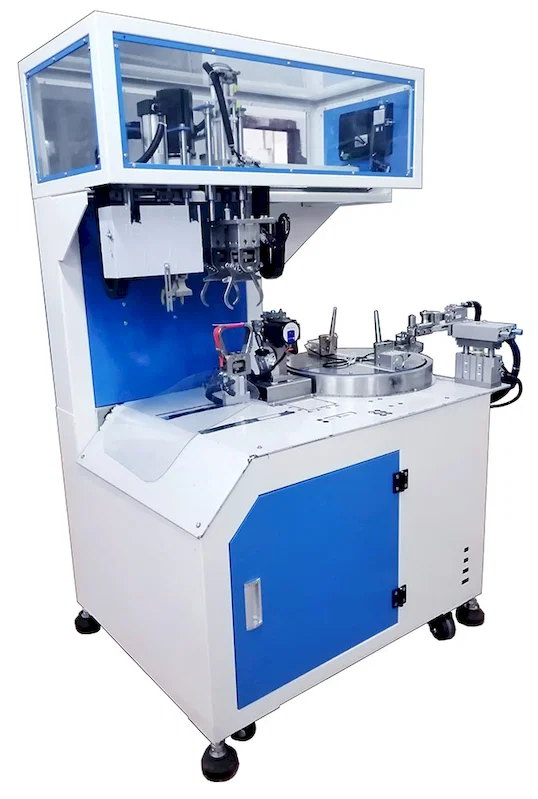

Introducing the WPM-RT-81T, a high-performance automatic winding and binding machine designed for efficiently processing AC wires, power cords, thick long wires, ropes, and hoses. This versatile machine creates large 8-word (figure 8) coils secured with a single tie, offering a modern and robust solution for managing larger and longer materials.
Engineered for Efficient and Stable Bundling of Larger Cables and Hoses - Optimized for Google Search:
The WPM-RT-81T automatic winding and binding machine features a new design with enhanced capabilities for handling thicker and longer materials. Ideal for manufacturers dealing with AC wires, power cords, thick long wires, ropes, and hoses, this machine ensures efficient and stable winding into a large 8-word (figure 8) shape, secured with a single tie. Its user-friendly design and durable construction make it a valuable asset to any production line.
Key Features and Benefits for Enhanced Productivity:
Large 8-Word Winding: Specifically designed for creating large figure-8 coils with an adjustable winding spacing of 150-300mm, ensuring neat and organized bundles.
Versatile Material Compatibility: Effortlessly handles AC wires, power cords, thick long wires, ropes, and hoses, providing a single solution for diverse bundling needs.
Powerful Servo Motor Performance: Equipped with a robust 1500W (1000 RPM) Turbot servo motor for the winding mechanism, delivering ample power and stable performance for demanding tasks.
Precise and Smooth Line Translation: Utilizes a 750W Turbot servo motor for line translation, eliminating step loss and ensuring accurate and consistent movement, even for longer materials.
Enhanced Mechanical Stability: Features a double slider for line translation, contributing to smoother and more stable overall operation.
Easy Monitoring and Maintenance: The top transparent chassis provides a clear view of the internal components and pipeline layout, facilitating easy inspection and maintenance. The three sides and top are easily disassembled for convenient access.
Organized and Accessible Power System: An independent power distribution cabinet, removable as a whole, ensures electrical lines are standardized, neat, and easily accessible for maintenance.
Extended Tie Belt Capacity: Supports tie belts with a bearing capacity of up to 7.5kg, reducing the frequency of tie belt changes and maximizing uptime.
Simplified Operation and Debugging: A separate button on the spit tie belt structure makes installation and debugging quick and easy.
Optimized Claw Design for Durability: The rubber band under the claw structure has been optimized for increased wear resistance, simplifying installation and debugging.
Improved Air System Reliability: The upgraded barometer includes automatic filtering and drainage, enhancing the reliability of the pneumatic system.
Durable and Robust Construction: Aluminum and conversion plates have been fully upgraded to steel material, significantly enhancing the machine's durability and lifespan.
Stable and Beautiful Component Connections: The connection structure of the wire grab, twisting claw, and lower claw is made of stainless steel, ensuring both stability and a professional appearance.
Quiet and Stable Coil Structure: The upgraded coil structure minimizes noise during operation and enhances overall stability.
High Production Output: Achieves a production efficiency of up to 1000 pieces per hour (for a 1-meter line), significantly reducing labor costs and increasing throughput.
Intuitive Operation and Maintenance: Designed for ease of operation, debugging, and maintenance, minimizing downtime and maximizing productivity.
Compact and Space-Saving Design: The machine's small footprint saves valuable floor space, reducing rental costs and optimizing workspace utilization.
Ergonomic and User-Friendly: The humanized design minimizes operator fatigue, improving overall work efficiency and operator comfort.
Advanced PLC Control System: Employs a programmable logic controller (PLC) and a bilingual (English and Chinese) man-machine interface for seamless and intuitive control.
Technical Specifications:
Parameter
Specification
Suitable Cable Type
AC/DC/USB cable, power cord, thick long wire, rope, hose
Winding Appearance
Large 8-word single-tie tape
Applicable Line Length
≤10 m
Applicable Wire Diameter
≤ φ 12 mm
Winding Spacing
150-300mm
Binding Diameter
≤45 mm
Head Length
0-130 mm
Tail Length
>0 mm
Production Efficiency
1000 PCS/h (1-meter line, 3 turns)
Applicable Pressure
0.55-0.65Mpa
Applicable Tie Tape
≤7.5 KG/ roll
Applicable Voltage
220V 50Hz
Machine Power
≤2800W
Machine Size (Approx.)
1040L720W1540H mm
Machine Weight (Approx.)
230KG
Main Components:
Cylinder: Yadeke cylinder and solenoid valve
Winding Servo Motor: 1500W Turbot
Line Translation Servo Motor: 750W Turbot
Motor: 57 stepper motor Thunder Race
Twisted Tie Belt Motor: 57 stepper motor Thunder Race
Drive System: High-reliability servo system, a control system for high-speed stable industrial controller
Ideal for Streamlining the Bundling of Larger Wires and Hoses:
The WPM-RT-81T automatic winding and binding machine is the perfect solution for manufacturers seeking to automate the process of creating large 8-word coils of AC wires, power cords, thick long wires, ropes, and hoses with a single, secure tie. Its robust design, powerful motor, and user-friendly features ensure efficient and reliable operation for a wide range of applications.
Boost Your Production Efficiency and Reduce Labor Costs - Inquire Today!
Invest in the WPM-RT-81T to significantly enhance your production efficiency, reduce labor costs, and achieve consistently high-quality bundled products for your larger wire and hose management needs. Contact us today for a detailed quote and to learn more about how the WPM-RT-81T can optimize your winding and binding processes!
