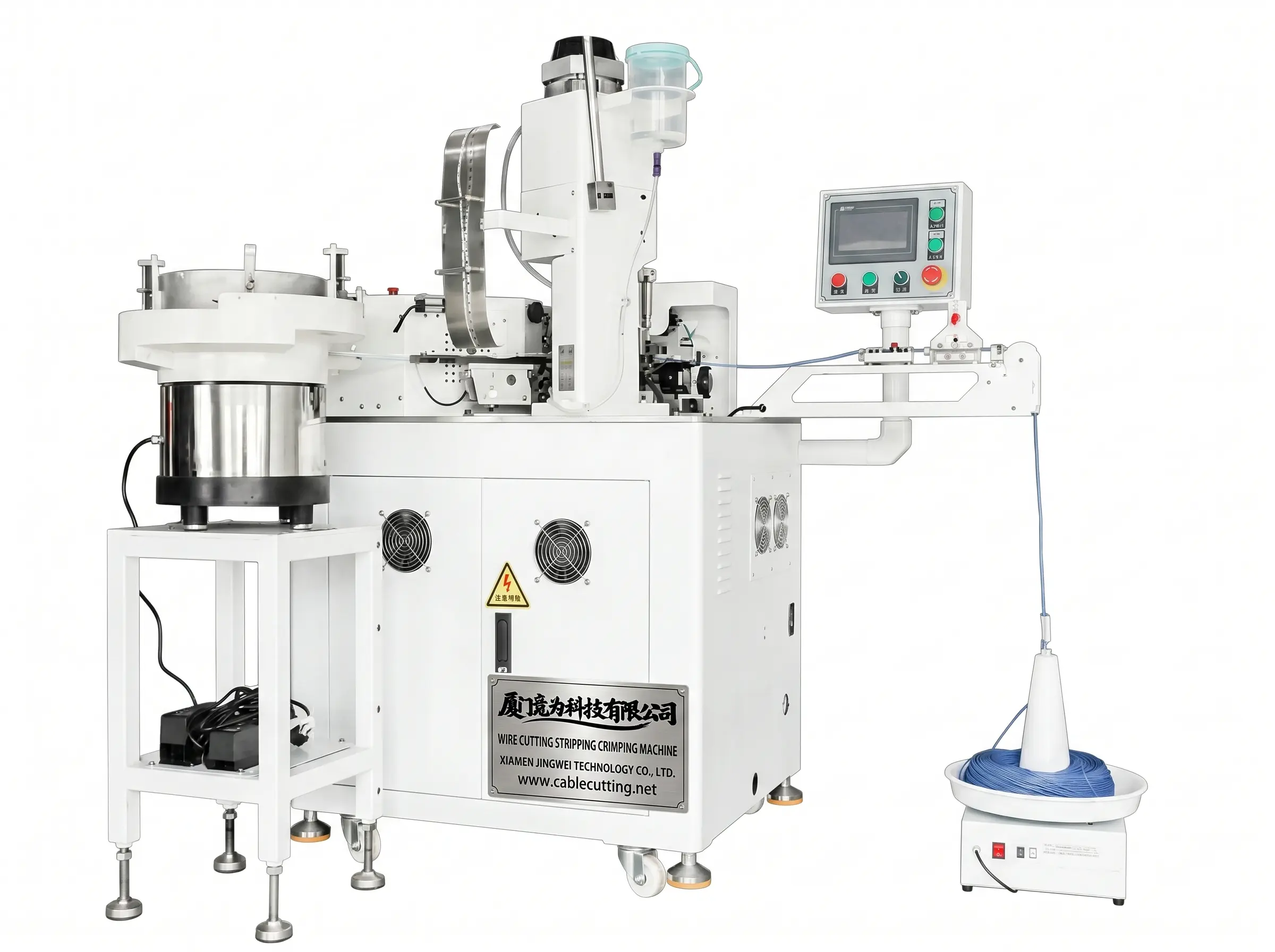

Auto Cable Crimp, Sleeve Insert & Twist Tinning Machine
Model No: WPM-018HS
Automate cable crimping, sleeve insertion and twisting tinning with the Automatic Cable Crimping, Sleeve Insertion and Twisting Tinning Machine. This machine integrates all four processes, providing complete and protected cable termination with sleeve insulation and tinning protection. Ideal for high-quality, fully finished cable terminations with sleeve insertion and tinning. Experience total automation for cable termination with sleeve insertion, twisting and tinning!
This Automatic Cable Crimping Sleeves Insertion and Twisting Tinning Machine is a state-of-the-art, fully automated solution for comprehensive wire processing. This multi-functional machine integrates wire cutting, stripping, crimping, sleeve insertion, and twisting tinning into a single, efficient operation.
Equipped with a high-quality servo motor and precision V stripping blades, this machine ensures accurate processing of wires ranging from AWG24# to AWG14#. The length and depth of wire cutting and stripping can be easily adjusted via the intuitive touch screen, providing convenient and simple operation.
All necessary parameters, including wire feeding speed, cutting length, stripping length, and crimping depth, can be effortlessly set and saved in the LCD touchscreen, making operation straightforward and repeatable. The machine features an integrated detecting function that can automatically identify issues such as wire exit failure, missing terminals, wire knots, crimping errors, and insufficient air pressure, ensuring high-quality output.
By decreasing set-up time and increasing effective performance, this automatic machine significantly boosts overall productivity and allows for faster processing times. For enhanced quality control, it can also be equipped with a CFM (crimping force monitor) to precisely control the crimping force during operation, guaranteeing consistently high-quality finished products.
Key Features and Advantages:
Fully Automatic Multi-Functionality: Integrates wire cutting, stripping, crimping, sleeve insertion, twisting, and tinning in one machine.
High-Precision Processing: Utilizes a high-quality servo motor and V stripping blades for accurate results.
Wide Wire Range: Processes wires from AWG24# to AWG14#.
Touch Screen Adjustment: Easily adjust cutting and stripping length and depth.
LCD Touchscreen Parameter Setting: Conveniently set and save all processing parameters.
Integrated Detection Functions: Automatically detects wire exit, terminal presence, wire knots, crimping quality, and air pressure.
Reduced Set-Up Time: Minimizes downtime and maximizes production efficiency.
Increased Effective Performance: Delivers high-speed and reliable wire processing.
Optional Crimping Force Monitor (CFM): Ensures consistent and high-quality crimping.
Processing Result Display: Provides real-time feedback on the processing status.
Customizable Options: Wire range and cutting/stripping length can be tailored to specific needs.
Detailed Functionality:
This fully automatic machine begins by precisely cutting the wire to the desired length. Next, the insulation is accurately stripped from the wire ends using the V stripping blades. On one end of the wire, a terminal is automatically crimped with simultaneous sleeve insertion. On the other end, the wire undergoes a twisting process followed by precise tinning. All these steps are seamlessly integrated and controlled through the user-friendly LCD touchscreen interface, where operators can set and save various parameters. The integrated detection system continuously monitors the process, alerting operators to any potential issues, ensuring consistent and high-quality output.
Applications:
This automatic cable processing machine is ideal for high-volume production in various industries, including:
Automotive wiring harness manufacturing
Consumer electronics assembly
Appliance manufacturing
Industrial control systems
Telecommunications equipment production
And any other application requiring automated wire cutting, stripping, crimping with sleeve insertion, twisting, and tinning.
Why Choose This Automatic Cable Processing Machine?
This machine offers a comprehensive and highly efficient solution for complex wire processing tasks. Its full automation, multi-functionality, precision, and integrated quality control features significantly reduce labor costs, increase production speed, and ensure consistent high-quality results. The customizable options further enhance its versatility to meet specific manufacturing requirements.
Technical Specifications:
Power: AC220V/50/60Hz
Capacity: 2000pcs-3000pcs/h (based on a wire length of 300mm)
Function: Wire cutting, stripping, one side crimping with sleeve insertion, other side twisting tinning
Wire Range: AWG14#-AWG24# (can be customized)
Cutting Length: 80-3000mm (can be customized)
Cutting Accuracy: ±0.5mm + cutting length x 0.2%
Stripping Length: 0.5-8mm (can be customized)
Pressure: 2.0T
Stroke: 30mm (40mm can be customized)
Air Pressure: 0.5MPa-0.6MPa
Processing Result Display: Yes
