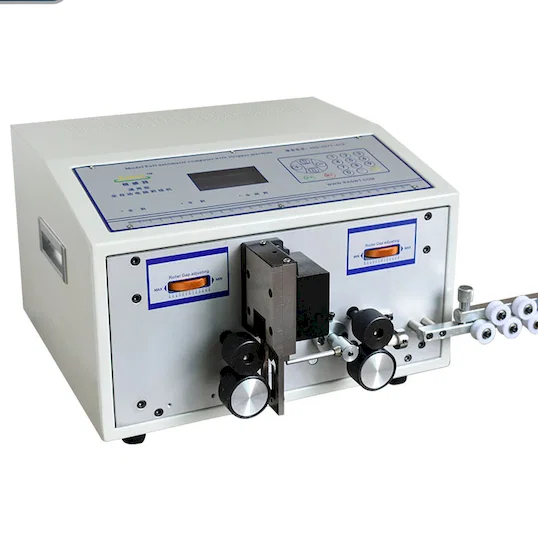

Touch Screen Wire Stripping and Cutting Machine (0.1-8mm²) WPM-ES
Model No: WPM-ES
Control wire stripping and cutting with touch screen interface using the Touch Screen Wire Stripping and Cutting Machine (0.1-8mm²) WPM-ES. This machine features a touch screen for easy operation and precise control over wire stripping and cutting for wire sizes 0.1-8mm². Ideal for touch screen controlled wire processing and user-friendly operation. Experience user-friendly wire processing with touch screen control and precise stripping and cutting!
Touch Screen Control Automatic Wire Stripping & Cutting Machine (0.1-8mm²/AWG28-AWG8) - Model WPM-ES
The WPM-ES Automatic Wire Stripping and Cutting Machine is a sophisticated and versatile numerical control equipment designed for precise wire processing. Incorporating advanced automation technology from Japan and Taiwan, this machine features an intuitive LCD touch screen interface with both Chinese and English display options for a user-friendly experience. With its sleek design, simple operation, convenient maintenance, stable performance, high speed, and exceptional precision, the WPM-ES is an ideal solution for various wire processing needs across the electronics industry. It handles a wide wire cross-section range of 0.1 to 8mm² (AWG28 to AWG8) and offers versatile stripping options, making it suitable for a broad spectrum of applications.
Key Features and Benefits:
Intuitive Touch Screen Control: Features an easy-to-use LCD touch screen with both Chinese and English interface options for simple operation and parameter setting.
Wide Wire Processing Range: Handles wire cross-sections from 0.1 to 8mm² (AWG28 to AWG8).
Versatile Stripping Options: Supports front-end stripping (0-50mm), rear-end stripping (0-50mm), and up to eleven places for intermediate (middle) stripping.
High Output Rate: Achieves a wire processing speed of 3000-5000 pieces per hour.
High Precision: Ensures accurate cutting with a tolerance of ±(0.2 + 0.002 * L) mm.
Adjustable Parameters: Wire length, thrum, and line end parameters can be easily customized to meet specific requirements.
Handles Various Wire Types: Optimally strips PVC, PTFE (Teflon), silicone cable, fiberglass wire, and more.
Multiple Voltage Options: Available in both AC 110V and 220V to suit different power requirements.
Error Correction: Allows for easy correction of cutting tolerances.
Durable Blade Material: Equipped with rigid steel blades for long-lasting performance.
Four-Wheel Drive: Ensures stable and reliable wire feeding.
Detailed Functionality:
The WPM-ES Automatic Wire Stripping and Cutting Machine utilizes a microcomputer control system and an easy-to-navigate LCD touch screen interface. Operators can effortlessly set the desired cutting length, front and rear stripping lengths, and configure up to eleven middle strip cuts. The machine precisely feeds, cuts, and strips the wires according to the programmed parameters. The ability to adjust various parameters ensures compatibility with a wide range of wire types and stripping requirements. The high processing speed significantly increases production efficiency.
Technical Parameters:
Model: WPM-ES
Voltage: AC 110V/220V/50/60 Hz
Dimensions: 537x507x400mm (LWH)
Display Mode: LCD liquid crystal display in Chinese and English interface
Widely used in the electronics industry for processing wires in:
Electrical appliances
Motors
Lamps and lanterns
Toys
And other various products requiring precise wire processing.
Why Choose the WPM-ES Touch Screen Control Automatic Wire Stripping Cutting Machine?
The WPM-ES offers a highly efficient, precise, and user-friendly solution for your wire processing needs. Its intuitive touch screen control, wide wire processing range, versatile stripping options, and high output make it an invaluable asset for increasing efficiency and ensuring quality in your production line.
Optional Accessory:
Crystal Protect Case: Available for an additional $90 USD.
Contact Us Today for a Quote!
Upgrade your wire processing capabilities with the WPM-ES Touch Screen Control Automatic Wire Stripping Cutting Machine. Contact us today to learn more and request a personalized quote. Please specify your preferred voltage (110V or 220V) when inquiring.
