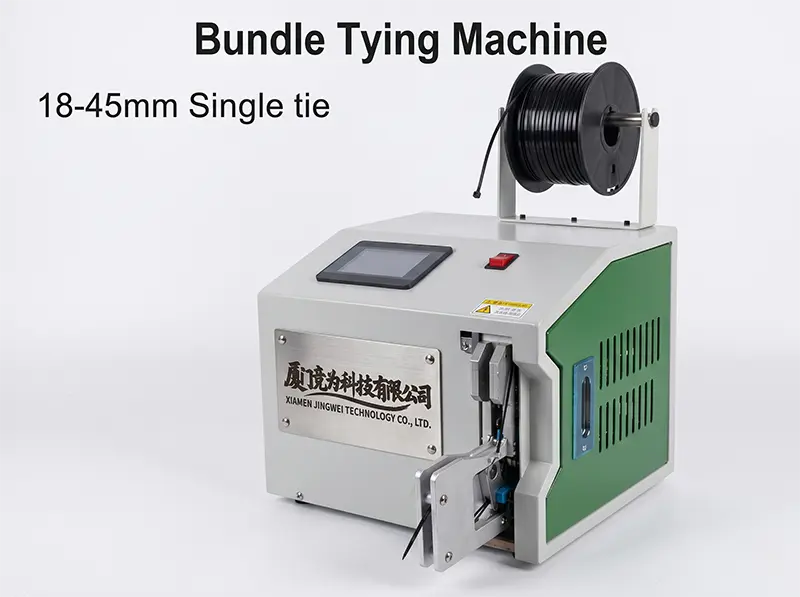

Bundle Tying Machine WPM-845C
Bundle Tying Machine WPM-845C
  • Bundle Tying Machine WPM-845C

  • Model No: WPM-845C
  • Twist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling Machine
    Smaller machine: Available bind wire Diameter: 5MM-30MM
    Smaller machine: Available bind wire Diameter: 8MM-30MM
    Medium-sized machine: Available bind wire Diameter: 18MM-45MM
    Large machine: Available bind wire Diameter: 40MM-80MM
  • Inquiry now
Detailed description
Twist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling Machine
Automatic Binding machine with touch screen WPM-845c
Equipment specifications and requirements
The machine is equipped with four motors (Motor and twisting wire motor for stepping motor), Adopt PLC program control for feeding cable tie, automatic cutting, and twist cable tie together. Winding motor for stepping motor by pedals control,
The machine applicable range: The machine applicable range:
Smaller machine: Available bind wire Diameter: 5MM-30MM
Smaller machine: Available bind wire Diameter: 8MM-30MM
Medium-sized machine: Available bind wire Diameter: 18MM-45MM
Large machine: Available bind wire Diameter: 40MM-80MM
Model


WPM-845A


WPM-845B


WPM-845C


WPM-845D


Voltage


AC220/50Hz AC110/60Hz


AC220/50Hz AC110/60Hz


AC220/50Hz AC110/60Hz


AC220/50Hz AC110/60Hz


Rated power


≤100W


≤100W


≤100W


≤100W


Dimensions


L350×W456×H315mm (Ribbon holder excluded)


L380×W420×H340mm (Ribbon holder excluded)


L380×W435×H340mm (Ribbon holder excluded)


L380×W435×H340mm (Ribbon holder excluded)


Weight


25KG


32KG


40KG


45KG


Tie length


65-130mm


75-140mm


120-190mm


200-300mm


Bundling diameter


5-30mm


8-30mm


18-45mm


40-80mm


Bundling speed


0.6s/time


0.6s/time


0.6s/time


0.6s/time


Ribbon


iron core plastic coating


iron core plastic coating


iron core plastic coating


iron core plastic coating


Input method


HMI touch screen


HMI touch screen


HMI touch screen


HMI touch screen




1.Input voltage: AC220V 50HZ/60HZ AC110V 60HZ
2.Power:<100W
3.Bundle wire speed:0.75 Sec/Time,66-75Time/Minute
6.Capacity:2200/hour ( wire twist and bundle)
Using environment
1. Ambient humidity≤85%RH
2.No violent shaking, Vibration, No corrosive air, No dusty


Twist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling Machine







Twist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling MachineTwist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling MachineTwist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling MachineTwist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling MachineTwist Tie Machine, Bundle Tying Machine, wire Bundling Machine, Cable Bundling Machine
