  • Touch Screen Tape Wrapping Machine WPM-303

  • Model No: WPM-303

  • Enjoy user-friendly tape wrapping with the Touch Screen Tape Wrapping Machine WPM-303. Featuring a touch screen interface for easy operation, this machine automates tape wrapping for wires and cables with precision and control. Ideal for intuitive and efficient tape application. Experience user-friendly automation for tape wrapping!

  • Inquiry now
Detailed description

Advanced Touch Screen Tape Wrapping Machine WPM-303 for Wire Harnesses

Introducing the WPM-303, a state-of-the-art Touch Screen Tape Wrapping Machine designed for efficient and precise application of tape to wire harnesses. Also known as Electric Tape Wrapping Equipment, Tape Wrapping Machine For Wire Harness, Cable Tape Winding Machine, and Wire Taping Wrapping Machine, the WPM-303 offers user-friendly operation and versatile functionality for a wide range of applications.

Intuitive Touch Screen Control for Enhanced Operation:

The WPM-303 features an advanced touch screen interface, providing operators with intuitive control over the taping process. Easily set parameters, select working modes, and monitor performance with just a few taps. The added convenience of a foot pedal further enhances operational flexibility.

Versatile Working Modes for Diverse Applications:

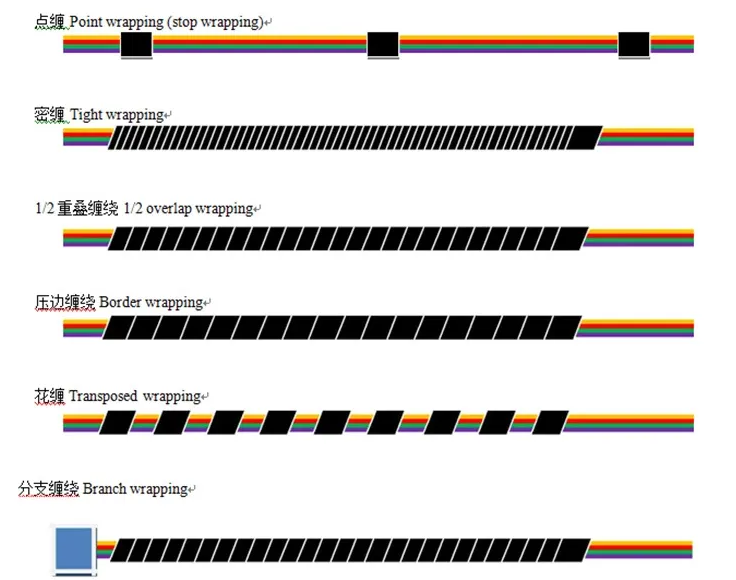

This machine supports multiple working modes to cater to various taping requirements:

  • Full Wrapping: Continuously wraps tape along the entire length of the wire harness.
  • Point Wrapping: Applies tape at specific, designated points along the harness.
  • Multi-Segment Wrapping: Allows for wrapping tape in multiple defined sections with customized parameters for each segment.

Key Features and Benefits:

  • Intuitive Touch Screen Operation: User-friendly interface for easy setup and control.
  • Multiple Working Modes: Offers flexibility for full, point, and multi-segment wrapping.
  • Wide Wire Diameter Compatibility: Handles wires with diameters ranging from 3MM to 40MM.
  • Accommodates Various Tape Types: Compatible with PVC tape, lint tape, acetate tape (without interleaving paper), and more.
  • Adjustable Tape Specifications: Supports tape with an inner diameter of 38MM, an outer diameter of up to ≤¢140MM, and a width of up to ≤20MM (customizable tape holders available for other sizes).
  • High Wrapping Frequency: Achieves a maximum wrapping frequency of 12 rotations per second for increased productivity.
  • Adjustable Air Pressure: Operates with an air pressure of ≥4P.
  • Unlimited Wrapping Length: Capable of wrapping wire harnesses of any length.
  • Stable Operation: Designed for reliable performance in industrial environments.

Product Parameter Specifications:

Parameter Specification
Operating Mode Touch screen, foot pedal
Working Mode Full wrapping, point wrapping, multi-segment wrapping
Power Supply AC110V/60HZ~AC220V/50HZ
Air Pressure ≥4P
Wrapping Length Infinite
Wire Diameter 3MM-40MM
Tape Specifications Inner diameter: 38MM, Outer diameter: ≤¢140MM, Width: ≤20MM (customizable)
Tape Type PVC / lint/acetate tape (no interleaving paper), etc.
Working Temperature 0-45℃
Humidity 10-90%RH (no condensation)
Cooling Mode Natural wind
Max Frequency 12R/S

Versatile Application and Compatibility:

The WPM-303 is designed to handle a wide range of wire harness taping applications. Its compatibility with various tape types and adjustable specifications make it a versatile solution for different industries.

High-Speed Performance for Increased Productivity:

With a maximum wrapping frequency of 12 rotations per second, the WPM-303 ensures fast and efficient tape application, significantly increasing your production output.

Reliable Operation in Diverse Environments:

Built to perform in demanding industrial settings, the WPM-303 operates reliably within a temperature range of 0-45℃ and a humidity range of 10-90%RH (non-condensing). The natural wind cooling mode helps maintain optimal operating temperature.

Ideal for Manufacturers of:

  • Automotive wire harnesses
  • Electronic cable assemblies
  • Appliance wiring harnesses
  • Industrial cable assemblies
  • And any other industry requiring precise and efficient wire harness taping.

Upgrade your wire harness production with the advanced and user-friendly Touch Screen Tape Wrapping Machine WPM-303. Contact us today for a quote and to learn how this machine can optimize your operations!
