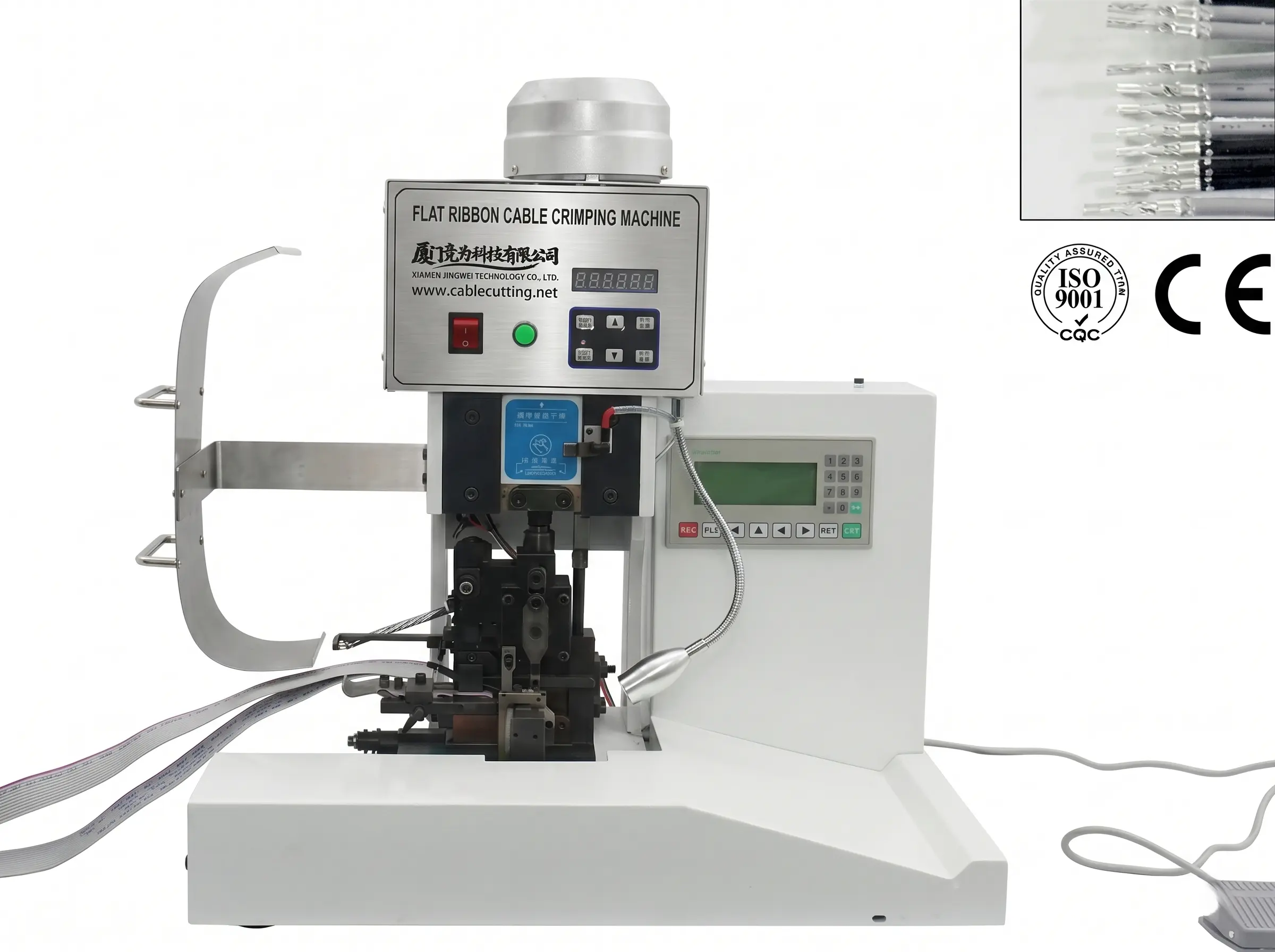

The Semi-automatic Flat Cable Crimping Machine is a highly reliable and efficient solution for crimping terminals onto various types of flat cables, including Flat Flex Cables (FFC) and membrane switch terminals. This machine combines manual wire placement with automated precision, ensuring consistent and high-quality crimps.
Key Features and Advantages:
Utilizes High-Quality Imported Parts: Equipped with a Servo motor, SMC cylinder, Mitsubishi PLC, and KOGANEI solenoid valve for superior performance and durability.
Semi-Automatic Operation: Operators manually place the wire, while the machine automatically feeds and positions the wire using a servo motor before performing the crimp.
Automatic Wire Feeding and Positioning: Servo motor ensures accurate and consistent wire feeding and automatic positioning for precise crimping.
Automatic Crimping: Once the wire is positioned, the machine automatically executes the crimping process.
User-Friendly Design: Easy to study and operate, minimizing training time and increasing productivity.
Wide Range of Applications: Suitable for crimping terminals on flat cables, membrane switch terminals, and FFC.
Precise Crimping Pressure: Delivers a crimping pressure of 1.5T for secure and reliable terminal connections.
Handles Short Flat Cables: Can process flat cables with a minimum length of 90mm.
Accommodates Short Splitting Lengths: Suitable for flat cables with a minimum splitting length of 15mm.
Versatile Pin Count Support: Applicable for flat cables with pin counts ranging from 2P to 20P.
Detailed Functionality:
The Semi-automatic Flat Cable Crimping Machine offers a streamlined process for terminating flat cables. The operator manually places the flat cable into the designated area of the machine. Upon initiation, the integrated servo motor precisely feeds and positions the cable according to the programmed settings. Once the cable is in the correct position, the machine automatically activates the crimping mechanism, applying a consistent pressure of 1.5T to securely attach the terminal. This semi-automatic operation combines the flexibility of manual wire handling with the accuracy and efficiency of automated feeding and crimping.
Applications:
This machine is widely used for crimping terminals onto flat cables in various industries, including:
Consumer electronics
Automotive electronics
Medical devices
Industrial equipment
Membrane switch manufacturing
FFC cable assembly
And other applications requiring reliable flat cable terminations.
Why Choose This Semi-Automatic Flat Cable Crimping Machine?
This machine offers a perfect balance of automation and manual control, providing high precision and efficiency for flat cable terminal crimping. The use of top-quality imported components ensures reliable and long-lasting performance. Its user-friendly design and wide range of applications make it an excellent choice for manufacturers looking to improve their flat cable assembly processes.
Optimize your flat cable termination process with our high-precision Semi-automatic Flat Cable Crimping Machine. Contact us today to learn more and request a personalized quote. Please provide details about your specific flat cable and terminal requirements for accurate recommendations.
