50 Ton Hydraulic Terminal Crimping Machine WPM-50T
50 Ton Hydraulic Terminal Crimping Machine WPM-50T
  • 50 Ton Hydraulic Terminal Crimping Machine WPM-50T

  • Model No: WPM-50T

  • Crimp large terminals with 50 tons of hydraulic force using the 50 Ton Hydraulic Terminal Crimping Machine WPM-50T. This machine delivers immense hydraulic force for crimping large terminals reliably and securely. Ideal for heavy-duty, large-terminal crimping applications requiring high force. Conquer even the largest terminals with ultimate hydraulic crimping power!

  • Inquiry now
Detailed description

Semi-Automatic 20T Hydraulic Terminal Crimping Machine for Cable Lugs & Ferrules

The Semi-Automatic 20T Hydraulic Terminal Crimping Machine is a robust and efficient solution designed for crimping cable lugs and ferrule terminals onto wires ranging from 10 to 120mm². This machine combines the power of hydraulics and pneumatics for reliable and energy-saving operation. Ideal for manufacturers seeking a stable, high-efficiency crimping solution for various terminal shapes, this machine is easy to operate and maintain.

Product Details:

  • Applicable Wire Size: 10-120mm²
  • Power Supply: AC 220V
  • Crimping Force: 20T
  • Air Supply: 0.5-0.8MPa
  • Terminal Shapes: Hexagonal, B-shaped, Square
  • Stroke: 40mm
  • Size: 4504501200mm
  • Weight: 200kg
  • Applicable Molds: Hexagon mold / Square mold / B-shaped mold

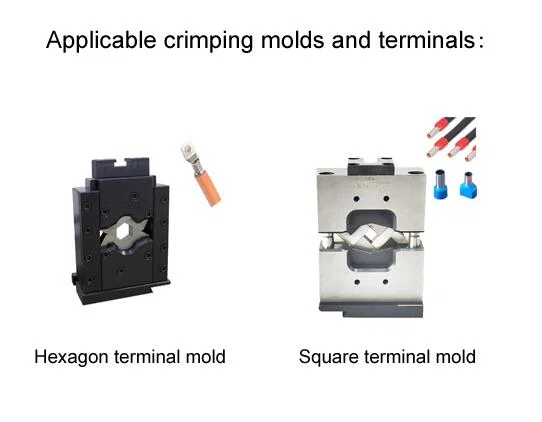

Remarks on Molds:

  1. Hexagon Mold: Suitable for crimping terminals in a hexagonal shape across the entire wire range of 10-120mm² without the need for mold changes.
  2. Square Mold: Specifically designed for crimping ferrule/cord end terminals in a square shape.
  3. B-shaped Mold: Requires a specific mold for each side of the terminal, depending on the terminal dimensions.

Features and Advantages:

  • High-Quality Pneumatic Parts: Equipped with AirTac pneumatic components ensuring good sealing, sensitive response, and long-lasting durability.
  • Dual Start Options: Offers convenient operation with either a button start or a footswitch start.
  • Energy-Efficient Operation: Utilizes both hydraulic and air power, leading to energy savings.
  • Simple and User-Friendly: Easy to operate with replaceable crimping molds for different terminal types.
  • Stable Performance and High Efficiency: Delivers consistent and reliable crimping with a high throughput.
  • Versatile Application: Suitable for crimping both standardized and non-standardized terminals.
  • Easy Maintenance: Designed for ease of maintenance, minimizing downtime and reducing operational costs for high-volume manufacturers.

Applications:

This semi-automatic hydraulic terminal crimping machine is widely used for crimping cable lugs onto power cables and ferrule terminals onto wire ends in various industries, including:

  • Electrical wiring and installations
  • Automotive electronics
  • Industrial machinery
  • Renewable energy systems
  • And more

Technical Specifications:

  • Machine Type: Semi-Automatic Hydraulic Terminal Crimping Machine
  • Crimping Force: 20 Ton
  • Applicable Wire Range: 10-120mm²
  • Power Supply: AC 220V
  • Air Pressure: 0.5-0.8MPa
  • Terminal Compatibility: Cable Lugs, Ferrule Terminals
  • Crimping Shapes: Hexagonal, B-shaped, Square (with corresponding molds)
  • Stroke: 40mm
  • Machine Dimensions: 450mm (L) x 450mm (W) x 1200mm (H)
  • Machine Weight: 200kg
  • Mold Options: Hexagon, Square, B-shaped

Why Choose This 20T Hydraulic Terminal Crimping Machine?

This semi-automatic crimping machine offers a powerful and reliable solution for your terminal crimping needs. Its robust construction, user-friendly operation, and compatibility with various terminal shapes make it an excellent investment for businesses looking to improve efficiency and ensure high-quality crimps. The use of AirTac pneumatic parts guarantees durability and consistent performance.

Explore Our Range of Crimping Machines:

We offer a comprehensive range of crimping machines to suit various needs, including:

  • Semi-auto super mute crimping machines (1.5T to 8T)
  • Servo motor drive crimping machines (suitable for enameled wire splicing)
  • Servo motor drive hexagon terminal crimping machine (15T)
  • Hydraulic hexagon/B-shape/point press terminal crimping machines (20T)
  • Auto-feeding loose terminal crimping machines (with vibrator)
  • Full auto single/double end wire cutting stripping crimping machines
  • Full auto one-sided cramping one-sided twisting tinning machines
  • Full auto cutting stripping crimping housing insertion machines

Contact Us for More Information:

For further information or to request a quote, please do not hesitate to contact us.
