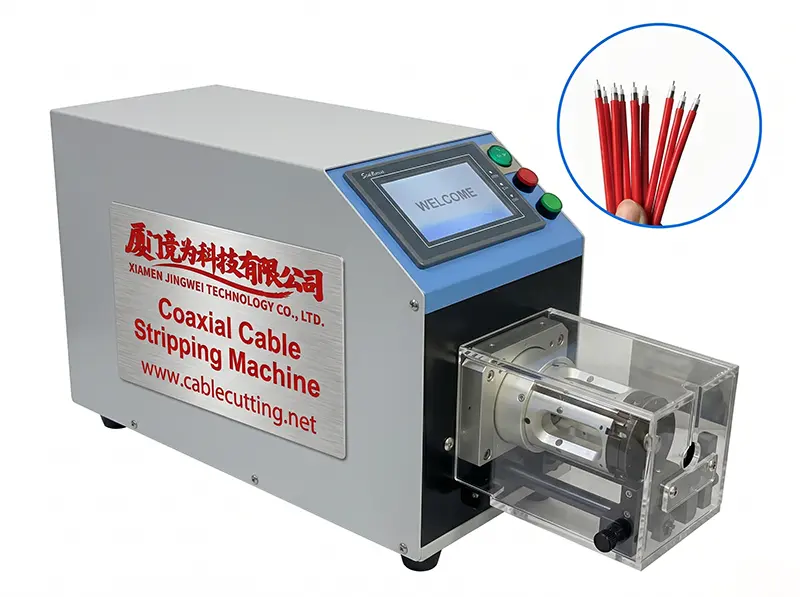

Coaxial Cable Wire Stripping Machine WPM-6806D
Coaxial Cable Wire Stripping Machine WPM-6806D
  • Coaxial Cable Wire Stripping Machine WPM-6806D

  • Model No: WPM-6806D

  • Enhance your coaxial cable stripping with the Coaxial Cable Wire Stripping Machine WPM-6806D. This machine provides precise and efficient stripping for coaxial cables, ensuring consistent quality and reduced errors. Perfect for high-volume coaxial cable preparation. Improve your coaxial cable processing with automated stripping!

  • Inquiry now
Detailed description

High-Precision Automatic Coaxial Cable Stripping Machine for Communication, Medical & Charging Cables - Model WPM-6806D

The WPM-6806D Automatic Coaxial Cable Stripping Machine is a cutting-edge solution designed for the precise processing of various cable types, including semi-flexible and flexible coaxial wires, charging cables, and medical wires, commonly used in the communication and medical industries. This machine ensures a smooth stripping edge with absolutely no damage to the conductor, meeting the highest quality standards.

Featuring a user-friendly huma-computer interface with a touch screen display, the WPM-6806D is easy to operate and understand. It boasts a powerful capability of stripping up to 9 layers and can store up to 99 sets of memory function for quick and efficient job changes. The innovative rotation blades head with four exquisitely designed blades significantly improves stripping stability and extends the blades' lifespan.

Driven by a high-performance servo-motor, a precision ball screw, and a multi-point movement control system, the WPM-6806D delivers stable and highly efficient working performance. The knife blades are crafted from imported Switzerland tungsten steel and coated with a durable titanium alloy, ensuring exceptional sharpness and longevity.

This versatile machine can handle multi-section stripping, stripping & twisting operations, automatic start in succession, and other specialized requirements, making it a comprehensive solution for diverse cable processing needs.

Key Features and Benefits:

  • Versatile Cable Compatibility: Suitable for semi-flexible and flexible coaxial wires, charging cables, and medical wires.
  • Damage-Free Stripping: Ensures a smooth stripping edge without harming the conductor.
  • User-Friendly Touch Screen Interface: Easy to operate and understand.
  • Multi-Layer Stripping: Capable of stripping up to 9 layers of insulation.
  • Large Memory Capacity: Stores up to 99 sets of processing parameters.
  • Stable Rotation Blades Head: Features four precisely designed blades for improved stripping stability and blade life.
  • Precise Servo Motor Control: Utilizes a servo-motor, ball screw, and multi-point movement control for efficient and accurate performance.
  • Durable Blades: Made from imported Switzerland tungsten steel with a titanium alloy coating for sharpness and longevity.
  • Multi-Functional: Supports multi-section stripping, stripping & twisting, and automatic start in succession.
  • Wide Wire Diameter Range: Processes wires with diameters from 1.5mm to 9.5mm.
  • Long Stripping Length Capability: Offers a maximum stripping length of 0.4-65mm.
  • High Processing Capacity: Achieves a rate of 700-1200 pieces per hour (depending on wire material).
  • High Length Accuracy: Ensures precise cutting and stripping with an accuracy of ±(0.002*L)mm.
  • Low Noise Operation: Operates at a noise level of less than 70dBA.
  • Automatic Wire Adjustment: Features an automatic clip wire device that adjusts the core with dynamo-driven and clip-tight strength process control.

Product Features and Parameters:

Features:

  1. Suitable for different types of semi-flexible and flexible coaxial wires, charging cables, and medical wires' processing in communication and the medical industry. The stripping edge is smooth and with no harm to the conductor.
  2. Huma-computer interface, easy to operate and understand, Max. 9 layers of stripping and 99 sets of memory function.
  3. Rotation blades head, four pieces of exquisitely designed blades improve stripping stability and blades' lifetime.
  4. Adopt servo-motor, precision ball screw, and multi-point movement control system, working performance is stable and efficient.
  5. Blades are made of imported tungsten steel and titanium alloy coating. sharp and durable.
  6. This machine can meet multi-section stripping, stripping & twisting, automatic start in succession, and other special requirements.

Model WPM-6806D Main Parameters:

  • Max. Stripping length: 0.4-65mm
  • Cutting depth: 0.01mm
  • Capacity: 700-1200pcs/h (depends on wire material)
  • Wire diameter: 1.5-9.5mm
  • Length accuracy: ±(0.002*L)mm
  • Max. stripping layer: 9 layers
  • Noise level: <70dBA
  • Display: Touch Screen
  • Knife blade: 2, material: Imports Switzerland tungsten steel
  • Centering slab: 2, material: Imports tungsten steel
  • Clip wire device: Automatically adjusts the core, the dynamo drives, and the clip-tight strength process control.
  • Dimensions and weight: 600185280mm, 25KG
  • Power supply: 220V/110V/50HZ/60HZ, 400W

Delivery Information:

  • Port of Loading: XIAMEN/SHENZHEN
  • Lead time: Normally in 5-7 days after the deposit received

Applications:

This machine is ideal for stripping coaxial cables, charging cables, and medical wires used in:

  • Communication equipment manufacturing
  • Medical device production
  • Charging cable assembly
  • RF and microwave applications
  • Other specialized wire processing tasks requiring high precision and versatility.

Why Choose the WPM-6806D Automatic Coaxial Cable Stripping Machine?

The WPM-6806D offers a high-precision, versatile, and efficient solution for stripping a wide range of coaxial and specialized wires. Its user-friendly touch screen interface, multi-layer stripping capability, large memory capacity, and ability to handle delicate wires without damage make it an excellent choice for manufacturers in the communication, medical, and charging cable industries.

Contact Us Today for a Quote!

Enhance your cable processing capabilities with the WPM-6806D Automatic Coaxial Cable Stripping Machine. Contact us today to learn more and request a personalized quote. Please specify your preferred voltage (220V or 110V) when inquiring.
