Strip coaxial cables with enhanced precision using the Coaxial Cable Stripping Machine WPM-6806N. This machine delivers efficient and accurate stripping for coaxial cables, ensuring consistent quality and preparation for connectors with improved precision. Ideal for coaxial cable preparation and reliable stripping with enhanced accuracy. Get efficient coaxial cable stripping with consistent and high-quality results and improved precision!

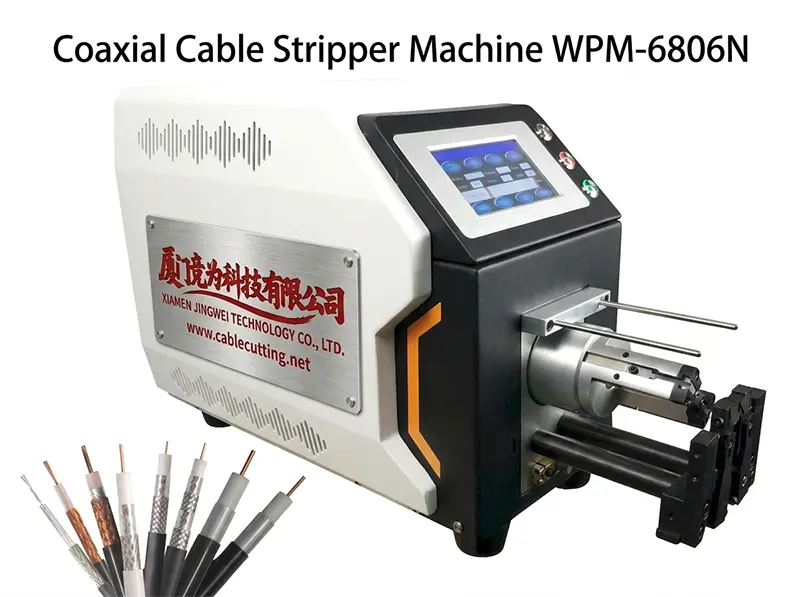

Semi-Automatic Servo Motor Coaxial Cable Stripping Machine with Multi-Layer Capability - Model WPM-6806N
The WPM-6806N Semi-Automatic Servo Motor Coaxial Wire Stripping Machine is a high-precision and user-friendly solution for stripping a variety of cables, including shielding cables, coaxial cables, multi-core inner wires, and single-core wires. This machine combines easy operation with exceptional accuracy, making it ideal for diverse cable processing needs. Equipped with an HMI touch screen, operators can effortlessly control the stripping process and access its advanced features. The WPM-6806N boasts the capability to strip up to 9 layers and store up to 99 machining parameters, offering remarkable versatility and efficiency.
Key Features and Benefits:
Versatile Cable Compatibility: Suitable for semi-flexible and flexible coaxial cables, charging cables, medical wires, and multi-layer precision stripping.
Damage-Free Stripping: Designed to strip cables without causing any damage to the delicate wire core.

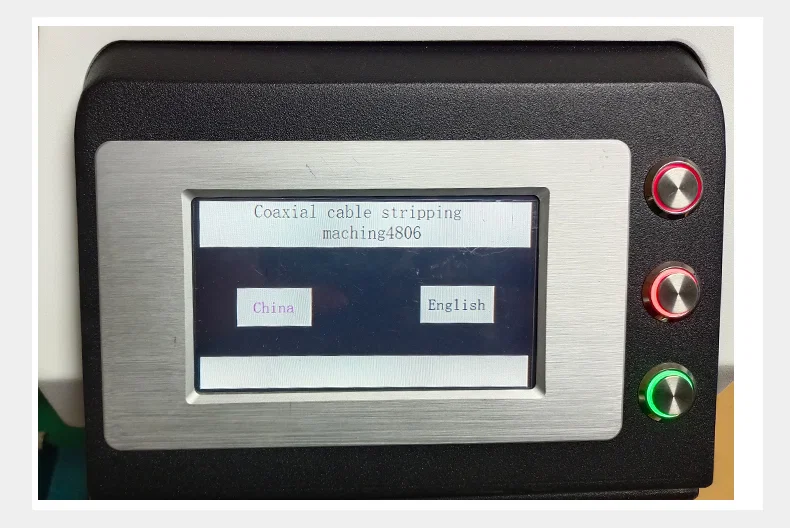

Intuitive HMI Touch Screen: Features a user-friendly touch screen interface for easy understanding and operation.
Multi-Layer Stripping: Can precisely strip up to 9 layers of insulation.
Large Parameter Storage: Capable of storing up to 99 different machining parameters for quick setup and recall.
Rotating Head Design: Utilizes a rotating head and well-designed blades to enhance stability and extend blade service life.
Precise Servo Motor Control: Employs a servo motor, precise ball screw, and multi-point motion control system for stable and efficient working performance.
Durable Blades: Features blades made from imported tungsten steel with a titanium alloy layer, ensuring sharpness and durability.
High Productivity: Achieves a productivity rate of 700-1200 pieces per hour.
Detailed Functionality:
The WPM-6806N Semi-Automatic Servo Motor Coaxial Wire Stripping Machine utilizes a servo motor and precise ball screw mechanism to deliver accurate and consistent stripping results. The rotating head design, coupled with high-quality tungsten steel blades, ensures clean and damage-free stripping of various cable types. The intuitive HMI touch screen allows operators to easily program stripping parameters, including the number of layers to strip, stripping length, and cutting depth. The ability to store multiple parameters makes it easy to switch between different cable processing tasks.
Product Features:
Suitable for all kinds of semi-flexible and flexible coaxial cable, charging cable, medical wire, and multi-layer precision stripping, with no damage to the wire core
HMI touch screen, easy to understand and operate. It can peel up to 9 layers and store up to 99 machining parameters
The use of a rotating head, and well-designed blades, improve the stability and service life of the blade
Servo motor, precise ball screw, and multi-point motion control system are adopted to ensure stable and efficient working performance
The blades adopt imported tungsten steel and titanium alloy layer, sharp and durable
Model WPM-6806N Specifications:
Wire Range: Diameter 1-7mm
Stripping Length: 0.1mm-50mm
Max Stripping Layers: 9 layers
Cutting Depth Unit: 0.01mm
Blade Material: Tungsten
Productivity: 700-1200pcs/h
Power Supply: AC220/50Hz AC110/60Hz (Please specify preference)
Weight: 30kg
Applications:
This machine is suitable for stripping:
Coaxial cables
Shielding cables
Multi-core inner wires
Single-core wires
Charging cables
Medical wires
And other semi-flexible and flexible cables requiring precision stripping.
Why Choose the WPM-6806N Semi-Automatic Servo Motor Coaxial Wire Stripping Machine?
The WPM-6806N offers a versatile, precise, and user-friendly solution for your coaxial and other cable stripping needs. Its ability to handle multiple layers, store numerous parameters, and provide damage-free stripping makes it an excellent choice for various industries requiring high-quality cable processing.
Contact Us Today for a Quote!
Upgrade your cable stripping capabilities with the WPM-6806N Semi-Automatic Servo Motor Coaxial Wire Stripping Machine. Contact us today to learn more and request a personalized quote. Please specify your preferred voltage (AC220V or AC110V) when inquiring.
