Shielded Wire Braid Mesh Brushing Machine
Shielded Wire Braid Mesh Brushing Machine Shielded Wire Braid Mesh Brushing Machine Shielded Wire Braid Mesh Brushing Machine
  • Shielded Wire Braid Mesh Brushing Machine

  • Model No:

  • Prepare shielded wire braids with the Shielded Wire Braid Mesh Brushing Machine. This machine brushes shielded wire braids, ensuring proper preparation for termination and grounding. Ideal for EMC shielding applications and reliable connections. Ensure proper shield braid preparation with dedicated brushing technology!

  • Inquiry now
Detailed description

High-Efficiency Shielded Wire Braided Mesh Brushing Machine for Coaxial & Special Cables

Continuous Processing with Adjustable Pulley and Enhanced Safety

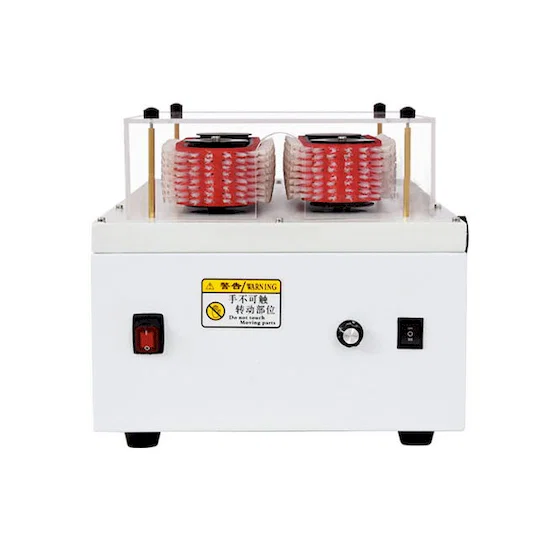

Our Shielded Wire Braided Mesh Brushing Machine is specifically designed for processing the braided shielding of various wires and cables, including coaxial cables and other special cables. This machine can handle cables with a length of up to 200mm and an outer diameter of up to 30mm. It offers continuous wire braid brushing, ensuring efficient and consistent preparation for subsequent processing. The operation mode is manual insertion, providing ease of use and control. Adjusting the pulley spacing during operation is quick and convenient – simply turn the rotating handle located on the right side of the machine body. The machine features a smart design with separate assembly of the electronic and mechanical parts, making future maintenance and inspection straightforward. For operator safety, this machine is equipped with a protective safety cover.

Key Features and Benefits:

  • Specifically for Shielded Wire Braiding: Designed for brushing the braided mesh of shielded wires, including coaxial and special cables.
  • Handles Coaxial and Special Cables: Suitable for a wide range of shielded cable types.
  • Continuous Processing: Allows for continuous brushing of the wire braid for efficient operation.
  • Manual Insertion Operation: Simple and direct manual insertion of cables for processing.
  • Convenient Pulley Spacing Adjustment: Easily adjust the pulley spacing during operation using the external rotating handle.
  • Separate Electronic and Mechanical Parts: Facilitates easy and convenient maintenance and inspection.
  • Enhanced Operator Safety: Equipped with a safety cover to protect the operator during use.
  • Adjustable Brushing Wire Length: Processes wires with a brushing length ranging from 10 to 200mm.
  • Suitable for Specific Wire Diameters: Designed for cables with an outer diameter up to 30mm (Please note the specification mentions "Applicable wire diameter 100 sq mm" which might refer to the cross-sectional area of the conductors within the cable. Please verify your specific cable requirements).
  • Efficient Productivity: Achieves a productivity rate of 100-200 pieces per hour, depending on the cable type and program settings.
  • Rotating Belt Wheel (Pulley) Breaking Structure: Utilizes a rotating belt wheel (pulley) mechanism for effective brushing.
  • Adjustable Rotation Mode: Features electronic control with an adjustable rotation speed from 0 to 1800 RPM.
  • Durable and Robust: Built with a torque of 12.5kg and a weight of 48kg for stability and longevity.

Detailed Functionality:

The shielded wire braided mesh brushing machine operates by manually inserting the cable into the processing area. The rotating belt wheels (pulleys) with integrated brushes then work to brush and prepare the braided shielding. The distance between the pulleys can be easily adjusted using the external handle to accommodate different cable diameters and braiding densities. The electronic control allows for precise adjustment of the rotation speed, optimizing the brushing process for various cable types. The separate assembly of electronic and mechanical components simplifies any future maintenance or inspection procedures.

Detailed Specifications:

  • Product Name: Shielded Wire Braided Mesh Brushing Machine
  • Processing Cable Type: Coaxial cables and special cables
  • Maximum Cable Length: 200mm
  • Maximum Outer Diameter: 30mm (Please also note: Applicable wire diameter 100 sq mm)
  • Processing Mode: Continuous wire braid brushing
  • Operation Mode: Manual insertion
  • Pulley Spacing Adjustment: Rotating handle on the right side
  • Component Assembly: Separate electronic and mechanical parts
  • Safety Feature: Safety cover
  • Brushing Wire Length: 10-200mm
  • Applicable Wire Diameter: Up to 30mm (and potentially handling conductors with a cross-sectional area around 100 sq mm - please verify)
  • Productivity: 100-200pcs/h (depending on cable type and program)
  • Breaking Structure: Rotating belt wheel (pulley)
  • Rotation Mode: Electronic control (0-1800 adjustable)

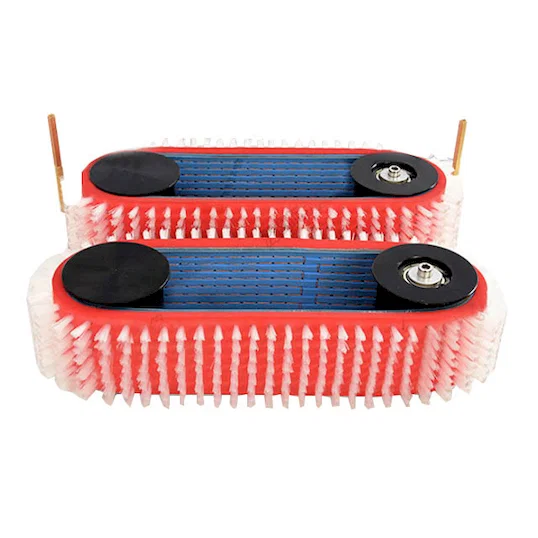

  • Belt Wheel (Pulley): 2 pieces (circumference 750mm * width 62mm)
  • Torque: 12.5kg
  • Power Supply: AC220-240V, 50-60Hz
  • Driver: Electric
  • Weight: 48kg
  • Dimensions: 420480320mm

Applications:

This machine is ideal for processing the braided shielding of:

  • Coaxial cables used in communication and signal transmission.
  • Special cables with braided shielding for various industrial applications.
  • Wires requiring prepared braided shielding for grounding or termination.

Why Choose Our Shielded Wire Braided Mesh Brushing Machine?

Our shielded wire braided mesh brushing machine offers a robust and efficient solution for preparing the braided shielding of coaxial and special cables. Its continuous processing capability, adjustable pulley spacing, ease of maintenance, and integrated safety features make it a valuable asset for cable manufacturers and wire processing facilities.

Contact Us Today for a Quote!

Streamline your shielded wire processing with our high-efficiency brushing machine. Contact us today to learn more and request a personalized quote. Please provide details about the types and dimensions of cables you need to process for accurate recommendations.

Keywords: Shielded wire braided mesh brushing machine, cable shielding brushing machine, wire protection mesh brushing machine, braided wires brushing machine, cable braid processing machine, coaxial cable braid brushing, special cable braid brushing, adjustable pulley wire brushing.
