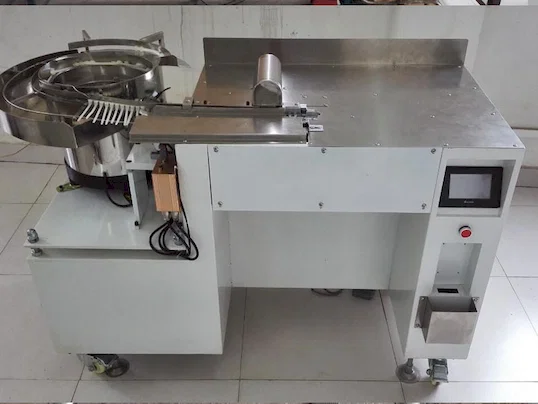

Semi-auto Nylon Cable Tie machine WPM-80-200
Semi-auto Nylon Cable Tie machine WPM-80-200
  • Semi-auto Nylon Cable Tie machine WPM-80-200

  • Model No: WPM-80-200
  • Semi-auto cable tie machine WPM-80-200,Cable Making Machine, Cable Tie Tying Machine, Cable Tie Making Machine
    Tape Shear residual length 0-2(mm) The length can be adjusted manually
    Maximum strapping diameter:
    Maximum tying diameter:80mm Tying Ф10MM
    100mm Tying Ф16MM
    120mm Tying Ф20MM
    150mm Tying Ф30MM
    160mm Tying Ф32MM
    200MM Tying Ф34MM
    nylon cable width 2.5-4.8MM
    Max strapping force 15(N)
    Application Strapping wire harness
    Power Supply AC220V; 50HZ /60HZ 750W
    Strapping ability 1500-1800PCS
    weight 125KG-200(kg)
    size 1200*550*780MM

  • Inquiry now
Detailed description
Semi-auto cable tie machine WPM-80-200, Cable Making Machine, Cable Tie Tying Machine, Cable Tie Making Machine
For vibration plates can't be on all kinds of cable tie
Ribbon width: 2.5-4.8MM
Plastic Zip Binding Nylon Cable Tie machine
Strapping ability:600-900PCS/H
Power:0.75
Functions and features
---Small, quick, reliable, cost-effective
---It’s a must for any cable harness production facility
---Pneumatic actuation of the feed roller, can feed speed can be adjusted ---Our machines are customized to your product according to the type and cable tie length and requirements of your application
---Automatic feeding, strapping, and cutting.
---PLC Control, touch screen.

Tape Shear residual length

0-2(mm) The length can be adjusted manually

Maximum strapping diameter

Maximum tying diameter 80mm

80mm Tying Ф10MM
100mm Tying Ф16MM
120mm Tying Ф20MM
150mm Tying Ф30MM

160mm Tying Ф32MM

200MM Tying Ф34MM

nylon cable width

2.5-4.8MM

Max strapping force

15(N)

Application

Strapping wire harness

Power Supply

AC220V; 50HZ /60HZ 750W

Strapping ability

1500-1800PCS

weight

125KG-200(kg)

size

1200*550*780MM

Plastic Zip Binding Nylon Cable Tie machine Apply for:

this machine is used for tying all kinds of wires, including AC wire, DC wire, PC wire, USB wire, PS/2 keyboard mouse lines and so on

.
