Precisely strip jacket cables with the Jacket Cable Stripping Machine 6.0 sq.mm WPM-09HT. Designed for accurate jacket removal on cables up to 6.0 sq.mm, this machine ensures clean and consistent stripping. Ideal for maintaining cable integrity and preparing for termination. Get clean and accurate jacket stripping for your cables!

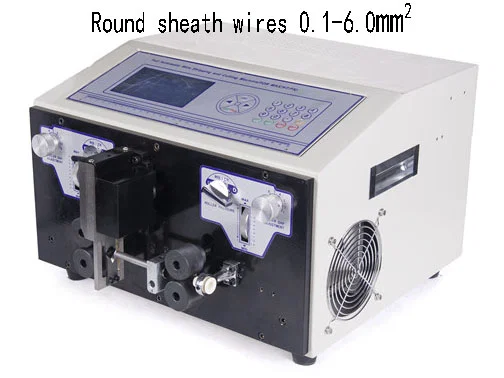

Automatic Jacket Cable Stripping Machine for Sheathed Wires - Model WPM-09HT
The WPM-09HT Automatic Jacket Cable Stripping Machineis a highly efficient and versatile numerical control equipment designed for the automated processing of jacketed and sheathed electrical wires. This machine integrates precise wire stripping and accurate cutting functionalities, making it an essential tool for various industries including electronics, electrical appliances, motors, lamps, and toys. Utilizing advanced automation technology from Japan and Taiwan, this machine ensures high accuracy and speed in wire processing. It is optimally suited for stripping insulation from materials such as PVC, Teflon, silica gel, and glass fiber.
Key Features and Benefits:
Specifically Designed for Jacketed Cables: Ideal for processing electrical wires with jacket-sheathed cables.
Automatic Full Computer Control: Ensures precise and consistent operation with minimal manual intervention.
Advanced Automation Technology: Incorporates leading automation technology for high efficiency and reliability.
Numerical Control Equipment: Offers precise control over cutting length and stripping length parameters.
Wide Wire Cross-Section Range: Handles wires with cross-sections from 0.1 to 6.0mm² (AWG10# to AWG32#).
Long Cutting Length Range: Allows for cutting lengths from 1mm up to an impressive 60,000mm.
Adjustable Stripping Length: Provides stripping lengths up to 50mm on both the head and tail sides.
Middle Stripping Capability: Can perform up to 13 sections of middle stripping along the wire.
High Processing Speed: Achieves a production rate of 3000-6000 pieces per hour.
User-Friendly English LCD Display: Features a clear and intuitive English language LCD for easy operation and parameter setting.
Powerful Four-Drive System: Ensures stable and efficient wire feeding and processing.
Durable Blade Material: Equipped with hard tungsten steel blades for long-lasting performance and clean cuts.
Detailed Functionality:
The WPM-09HT Automatic Jacket Cable Stripping Machine automates the complete wire preparation process for jacketed and sheathed cables. First, the wire is automatically fed into the machine and cut to the programmed length. Next, the outer jacket and insulation are precisely stripped from both ends according to the set stripping lengths. The machine also offers the capability to perform middle stripping at up to 13 different sections along the wire. All parameters can be easily programmed and adjusted through the user-friendly English LCD display, and the powerful four-drive system ensures smooth and reliable operation throughout the process.
Apply for:
Widely used in the electronics industry, the city has (likely referring to urban infrastructure or related electrical applications), electrical appliances, motors, lamps, toys, and other various products of wire processing.
Specification:
Model: WPM-09HT
Available Wire Cross-Section Range: 0.1～6.0mm²(AWG10#-AWG32#)
Conduit Diameter: ￠10mm
Cutting Length: 1～60000mm
Cutting tolerance: ± (0.002 × L) (Cutting length)
Stripping Length: Head 0-50mm, Tail 0-50mm
Middle Stripping Section: Max 13
Speed: 3000-6000pcs/h
Display Way: English LCD
Drive Mode: 4 Drives
Blade Material: Hard tungsten steel
Appropriate Wire: Electrical wires with jacket-sheathed cables
Power Supply: 220V/50Hz 110V/60Hz (Optional)
Power Rating: 300W
Measurement: 390X350X255mm
Weight: 37kg
Why Choose the WPM-09HT Automatic Jacket Cable Stripping Machine?
The WPM-09HT offers a reliable and efficient solution for automating the processing of jacketed and sheathed electrical wires. Its high speed, precision, versatile functionality, and user-friendly interface make it an ideal choice for manufacturers looking to streamline their wire preparation processes and achieve consistent, high-quality results.
Contact Us Today for a Quote!
Optimize your jacketed wire processing with the WPM-09HT Automatic Cable Stripping Machine. Contact us today to learn more and request a personalized quote. Please specify your preferred voltage (220V or 110V) when inquiring.
