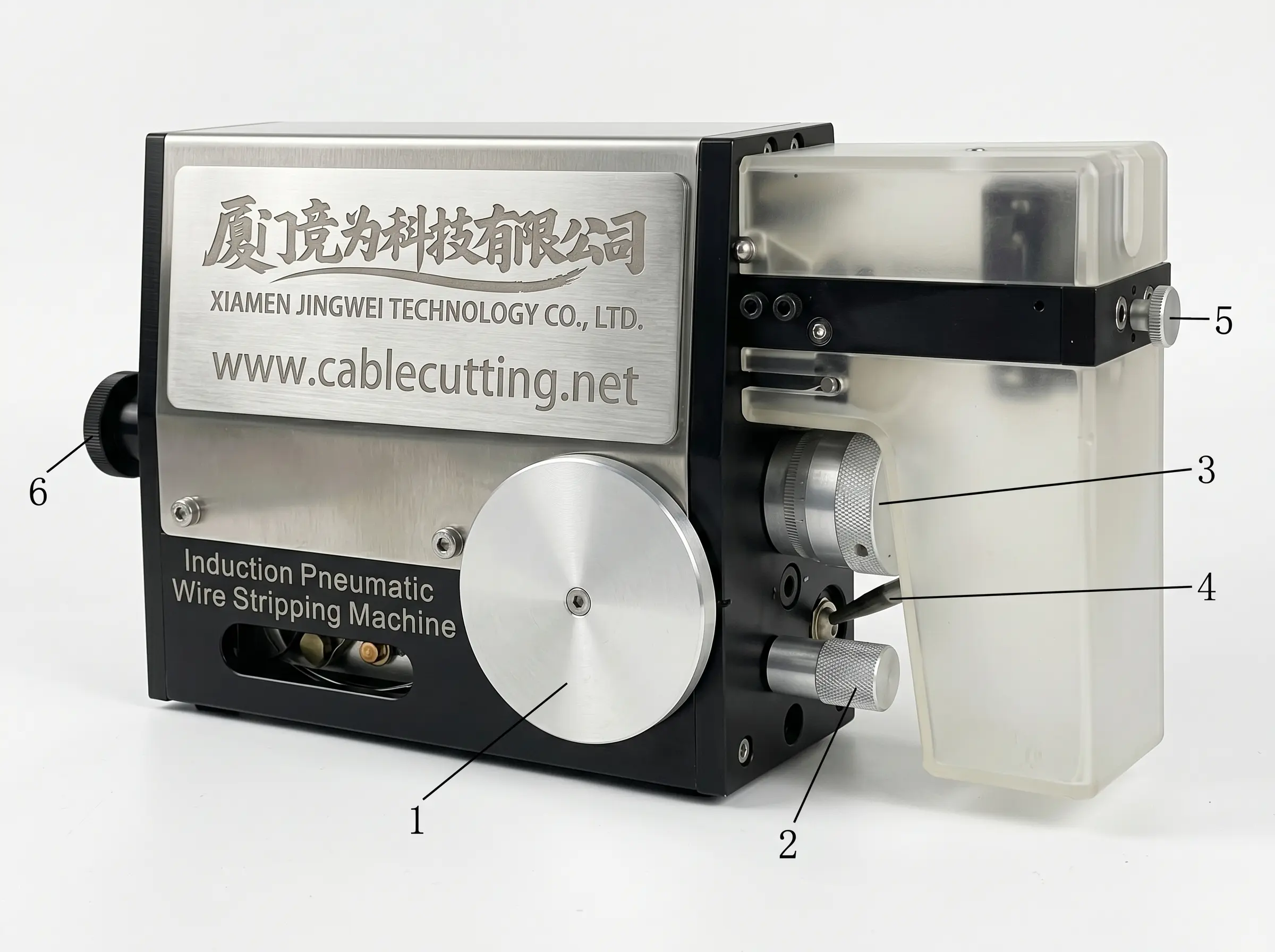

The WPM-2018 Induction Pneumatic Wire Stripping Machine is a cutting-edge device engineered for high accuracy and efficiency in stripping a wide range of wires. This machine offers a fast return on investment due to its reliable performance and low maintenance requirements. Its compact design allows for easy integration of multiple processing units into a single workstation, making it an ideal choice for harness and multi-core cable processing where space efficiency is crucial.
Key Features and Benefits:
-
High Precision: Delivers exceptional stripping accuracy with a diameter setting precision of 0.01mm and stripping accuracy of ±0.5mm for full strip and ±2mm for part strip.
-
Economical & User-Friendly: Offers a cost-effective solution with intuitive operation.
-
Extremely Low Maintenance: Designed for minimal upkeep, reducing downtime and operational costs.
-
Easy Operation: Simple and straightforward to use, requiring minimal training.
-
No Blade Change Necessary: Eliminates the hassle and cost associated with frequent blade changes.
-
Compact Design: Small footprint allows for easy integration into workstations and efficient multi-unit setups.
-
High Efficiency: Processes wires quickly with a processing time of just 0.3 seconds.
-
Versatile Wire Compatibility: Applicable for a wide array of wire types including PVC, Teflon, PUR, glass wire, 1015, 1017, multicore sheath cable, double round core sheathing wire, rubber wire, and more.
-
Pneumatic Operation: Utilizes pneumatic power for consistent and reliable stripping performance.
Detailed Functionality:
The WPM-2018 Induction Pneumatic Wire Stripping Machine employs an advanced induction pneumatic system to precisely remove insulation from various wire types. Its compact design facilitates its use in automated production lines or as a standalone unit. The machine's high precision ensures consistent stripping results, while the absence of blades simplifies operation and reduces maintenance needs. The user-friendly interface allows for easy setup and adjustment of stripping parameters.
Detailed Specifications:
-
Model: WPM-2018
-
Outer Dimensions: L265mm * W70mm * H135mm
-
Weight: 2.4kg
-
Power Supply: 220V
-
Processing Time: 0.3 seconds
-
Air Pressure: 0.5Pa - 0.8Pa
-
Stripping Length: Maximum 20 mm (Note: Description also mentions max 18mm)
-
Applicable Wires: PVC, Teflon, PUR, glass wire, 1015, 1017, multicore sheath cable, double round core sheathing wire, rubber wire, etc.
-
Wire Size: 0.03 – 3.0 mm² (32 – 12 AWG)
-
Maximum Wire Diameter: 3.2mm
-
Precision of Diameter Setting: 0.01mm
-
Stripping Accuracy: Full strip: ±0.5mm, Part strip: ±2mm
Applications:
This machine is ideal for stripping insulation from:
-
PVC wires
-
Teflon wires
-
PUR wires
-
Glass wires
-
Hook-up wires (e.g., 1015, 1017)
-
Multicore sheath cables
-
Double round core sheathing wires
-
Rubber wires
-
Other wires within the specified size range.
Why Choose the WPM-2018 Induction Pneumatic Wire Stripping Machine?
The WPM-2018 offers a powerful combination of high precision, efficiency, user-friendliness, and low maintenance. Its ability to handle a wide variety of wire types without the need for blade changes makes it an exceptionally versatile and cost-effective solution for various wire stripping applications. The compact design further enhances its appeal for integration into automated systems or space-constrained environments.
Contact Us Today for a Quote!
Upgrade your wire stripping process with the WPM-2018 Induction Pneumatic Wire Stripping Machine. Contact us today to learn more about this advanced and reliable machine and request a personalized quote.
