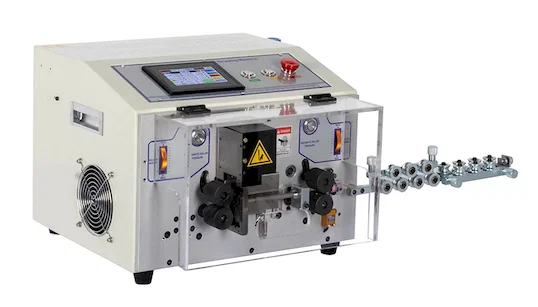

Double Layer Round Sheath Wire Stripping and Cutting Machine WPM-YHT3
Double Layer Round Sheath Wire Stripping and Cutting Machine WPM-YHT3
  • Double Layer Round Sheath Wire Stripping and Cutting Machine WPM-YHT3

  • Model No: WPM-YHT3

  • Process double layer round sheath wires with the Double Layer Round Sheath Wire Stripping and Cutting Machine WPM-YHT3. This machine strips and cuts double layer round sheath wires, ensuring efficient and consistent preparation for specialized cable types. Ideal for double layer round sheath cable processing and dedicated cutting and stripping. Streamline double layer round sheath wire processing with dedicated cutting and stripping technology!

  • Inquiry now
Detailed description

Double Layer Round Sheath Wire Cutting & Stripping Machine with Multi-Core Capability - Model WPM-YH3

The WPM-YH3 Double Layer Round Sheath Wire Cutting and Stripping Machine is a specialized and high-performance machine designed for efficiently processing double-layer round sheath wires. This versatile machine excels at cutting wires to precise lengths and stripping both the outer jacket and inner core insulation from 2, 3, or 4 core wires. With a wide cutting length range from 0.1mm to 99999.9mm and highly accurate stripping capabilities, the WPM-YH3 significantly enhances productivity for manufacturers working with multi-core round sheath cables.

Key Features and Benefits:

  • Specialized for Double Layer Round Sheath Wires: Designed specifically for processing multi-layered round cables.
  • Multi-Core Stripping: Capable of stripping 2, 3, or 4 core wires simultaneously.
  • Precise Cutting Length Adjustment: Allows for cutting lengths from 0.1mm up to an impressive 99999.9mm.
  • Adjustable Stripping Lengths: Offers independent adjustment for outer layer stripping (head: 1-120mm, tail: 1-50mm) and core line stripping (head: 0.1-30mm, tail: 2-30mm).
  • High Stripping Accuracy: Achieves exceptional stripping accuracy thanks to a silent hybrid stepper motor with 0.01mm precision.
  • Customizable Middle Stripping: The intermediate stripping function can be tailored to specific requirements.
  • High Capacity: Achieves a production rate of 1000-2000 pieces per hour (for L = 200mm).
  • Durable Blade Material: Equipped with imported tungsten steel or high-speed steel blades for long-lasting performance.
  • Automatic Entry/Exit: Features automatic wire feeding and ejection for streamlined operation.
  • Timing Start Function: Allows for pre-setting a start time for automated processing.
  • Jog Adjustment: Provides precise manual adjustment for setup and fine-tuning.

Detailed Functionality:

The WPM-YH3 Double Layer Round Sheath Wire Cutting and Stripping Machine automates the process of cutting multi-core round sheath wires to the desired length and precisely removing the insulation in two layers: the outer jacket and the individual core insulation. The operator can program the cutting length and independent stripping lengths for both the outer layer and the inner cores. The machine's advanced stepper motor ensures highly accurate and consistent stripping results. The customizable middle stripping function allows for exposing specific sections of the inner cores along the wire length.

Function: Wire cutting, double-end stripping, middle stripping

Technical Parameters:

  • Model: WPM-YH3
  • Wire Out Diameter: 2-7mm
  • Strip Cores: 2/3/4
  • Cutting Length: 0.1mm - 99999.9mm
  • Stripping Length:
    • Outer Layer: Head: 1-120 mm, Tail: 1-50mm
    • Core Line: Head: 0.1-30mm, Tail: 2-30mm
  • Stripping Accuracy: Silent hybrid stepper motor 0.01mm
  • Intermediate Strip: Customizable
  • Capacity: 1000-2000 pcs/h (L = 200mm)
  • Blade Material: Imported tungsten steel/high-speed steel
  • Air Pressure: 0.8 Mpa
  • Power: AC110V/220V 50/60HZ 300W
  • Body Size: 420mm * 460mm * 335mm
  • Body Weight: 38kg
  • Remark Function: Automatic entry/exit, timing start, jog adjustment

Applications:

This machine is ideal for processing double-layer round sheath wires used in various applications, including:

  • Electrical wiring for appliances
  • Communication cables
  • Power cables
  • Automotive wiring
  • And other applications requiring precise stripping of multi-core round cables.

Why Choose the WPM-YH3 Double Layer Round Sheath Wire Stripping Cutting Machine?

The WPM-YH3 offers a specialized and highly accurate solution for processing double-layer round sheath wires. Its ability to handle multi-core cables, long cutting lengths, customizable middle stripping, and high production capacity make it an invaluable tool for manufacturers looking to streamline their wire preparation processes and achieve consistent, high-quality results.

Contact Us Today for a Quote!

Upgrade your multi-core round sheath wire processing capabilities with the WPM-YH3. Contact us today to learn more and request a personalized quote. Please specify your preferred voltage (AC110V or AC220V) when inquiring.

Keywords: Double layer wire stripping machine, round sheath wire stripper, multi-core wire stripping machine, fiber wire strip machine, jacket cable strip machine, cable stripping machinery, WPM-YH3.

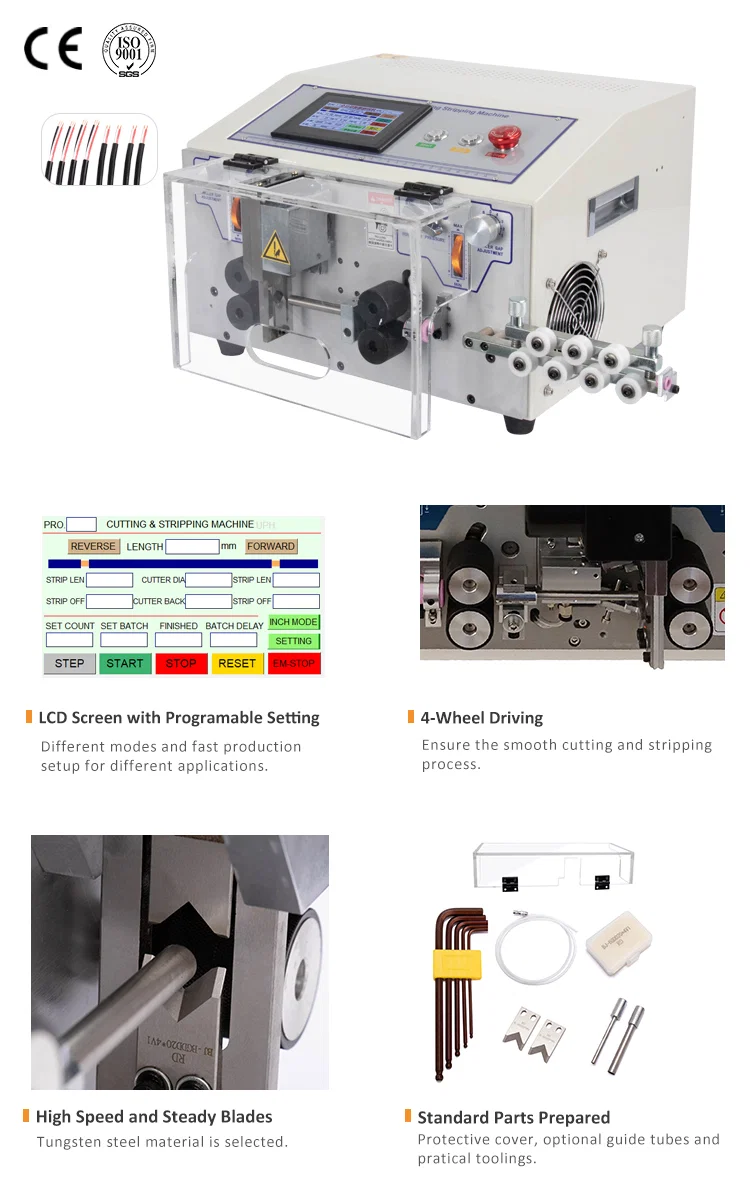

Double layer round sheath wire stripping cutting machine WPM-YH3 Fiber Wire Strip Machine, Jacket Cable Strip Machine, Cable Stripping Machinerysample display of Double layer round sheath wire stripping cutting machine WPM-YH3 Fiber Wire Strip Machine, Jacket Cable Strip Machine, Cable Stripping Machinery
