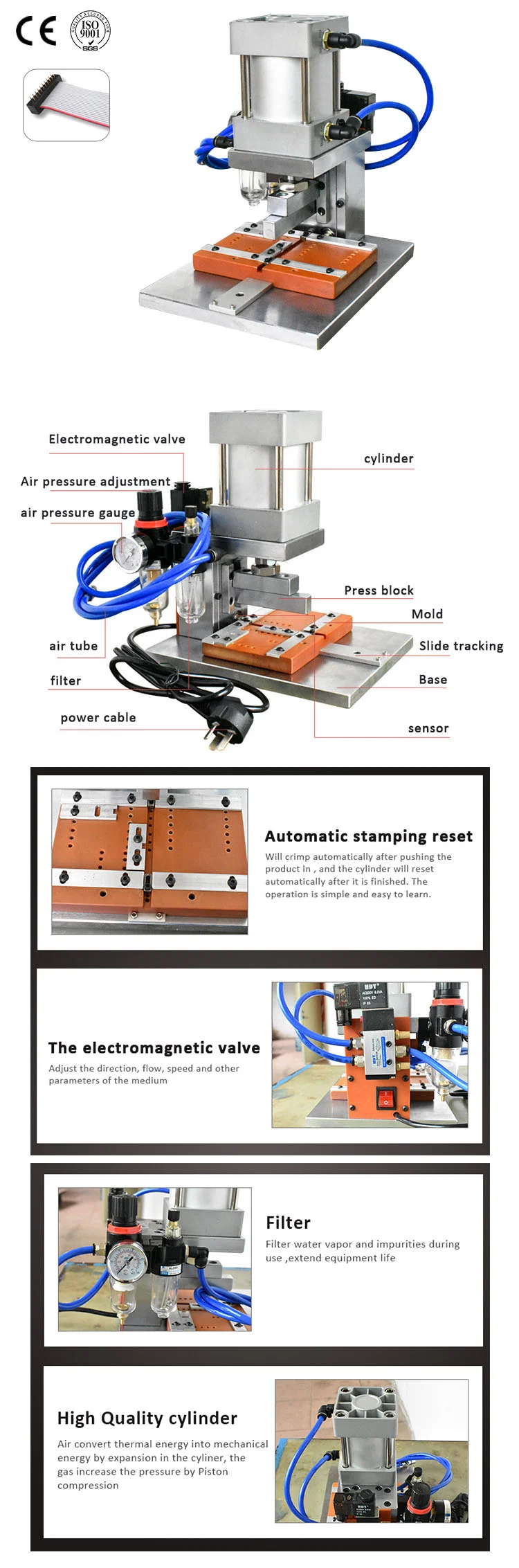

Pneumatic IDC Flat Cable Connector Crimping Machine for 2P to 64P Ribbon Cables
The Flexible IDC Flat Cable Connector Crimping Machine is a reliable and efficient pneumatic solution designed for crimping Insulation Displacement Connectors (IDCs) onto flat ribbon cables. This versatile machine accommodates a wide range of connectors, from 2P up to 64P, making it ideal for various electronic assembly applications. Its user-friendly design ensures high productivity with minimal effort.
Key Features and Advantages:
-
Wide Pin Count Compatibility: Crimps IDC connectors ranging from 2 pins up to 64 pins.
-
High Productivity: Capable of crimping between 300 and 600 times per hour, depending on the product type.
-
Pneumatic Operation: Ensures consistent and reliable crimping with low air consumption.
-
Low Failure Rate: Robust design and pneumatic operation contribute to a low failure rate and increased uptime.
-
Easy Maintenance: Simple mechanical structure makes maintenance quick and easy.
-
Mechanical Crimping: Features a reliable mechanical crimping mechanism that activates after the product is inserted.
-
Multiple Fixture Options: Comes with different fixtures to accommodate various pin counts:
-
One fixture for 4-30 pin connectors
-
One fixture for 30-50 pin connectors
-
One fixture for 64 pin connectors
-
Compact Design: Small footprint saves valuable workspace.
-
Lightweight: Easy to move and set up.
Detailed Functionality:
Operating this IDC flat cable connector crimping machine is straightforward. The operator manually inserts the flat ribbon cable and the IDC connector into the appropriate fixture. Once the product is correctly positioned, the machine's mechanical crimping mechanism is activated, typically by a hand lever or foot pedal (depending on the specific model). The pneumatic system then provides the necessary force for a precise and secure crimp. The interchangeable fixtures allow for quick adaptation to different pin count connectors.
Applications:
This pneumatic IDC flat cable connector crimping machine is widely used in various industries for connecting flat ribbon cables to IDC connectors, including:
-
Electronics manufacturing
-
Computer assembly
-
Telecommunications equipment
-
Industrial control systems
-
Automotive electronics
-
And other applications requiring reliable flat cable connections
Why Choose This Pneumatic IDC Flat Cable Connector Crimping Machine?
This machine offers a cost-effective and efficient solution for crimping IDC connectors onto flat ribbon cables. Its wide pin count compatibility, high productivity, and reliable pneumatic operation make it a valuable asset for any manufacturing environment. The low maintenance requirements and ease of use further contribute to its overall value and efficiency.
Technical Specifications:
-
Applicable Connector Type: IDC Flat Cable Connectors (Ribbon Cable)
-
Pin Number Range: 2P to 64P
-
Crimping Speed: 300-600 times per hour (depending on product type)
-
Air Supply: 6-8 kg/cm² (0.6-0.8 MPa)
-
Voltage: 110/220V AC, 50/60HZ
-
Machine Size: 250mm (L) x 200mm (W) x 330mm (H)
-
Machine Weight: 14 KG
-
Fixtures Included: One for 4-30 pins, one for 30-50 pins, one for 64 pins
Contact Us Today for a Quote!
Streamline your IDC flat cable connector assembly process with this efficient pneumatic crimping machine. Contact us today to learn more and request a personalized quote. Please specify your preferred voltage (110V or 220V) when inquiring.
