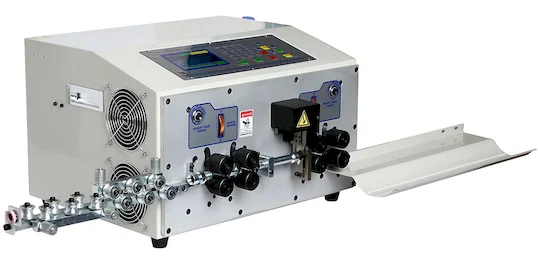

Fully Auto Computer Wire Strip & Cut Machine 25mm² WPM-MAX1
Fully Auto Computer Wire Strip & Cut Machine 25mm² WPM-MAX1
  • Fully Auto Computer Wire Strip & Cut Machine 25mm² WPM-MAX1

  • Model No: WPM-MAX1-8

  • Automate computer wire stripping and cutting fully for wires up to 25mm² with the Fully Automatic Computer Wire Stripping and Cutting Machine 25mm² WPM-MAX1. This machine fully automates cutting and stripping for computer wires up to 25mm², providing high-volume processing for medium-gauge computer wires. Ideal for fully automated computer wire processing and wire sizes up to 25mm². Experience total automation for computer wire stripping and cutting up to 25mm²!

  • Inquiry now
Detailed description

High-Speed Full Automatic Wire Cutting and Stripping Machine (Up to 25mm²) - Model WPM-MAX1-8

The WPM-MAX1-8 Full Automatic Computer Wire Stripping and Cutting Machine is a robust and high-performance solution designed for efficiently processing a wide range of wires and cables up to 25mm² in cross-section. This fully automatic machine excels at cutting wires to precise lengths and stripping insulation from both ends with exceptional speed and accuracy. With a maximum stripping length of 100mm on both the front and rear, and a remarkable output capacity of 3000-8000 pieces per hour for a 100mm length wire, the WPM-MAX1-8 significantly boosts productivity in high-volume wire processing environments.

Key Features and Benefits:

  • Fully Automatic Operation: Automates the entire wire cutting and stripping process for maximum efficiency.
  • High Wire Processing Capacity: Handles wire core sections from 0.1 to 25mm².
  • Long Stripping Length Capability: Offers a generous stripping length of up to 100mm on both the front and rear of the wire.
  • High Output Rate: Achieves an impressive production rate of 3000-8000 pieces per hour (for L=100mm).
  • Precise Cutting Length Adjustment: Allows for cutting lengths from 1 to 9999mm.
  • Accurate Cutting: Ensures precise cutting with a tolerance of ±(0.2 + 0.002 * L) mm.
  • Durable Blade Material: Equipped with hard tungsten steel blades for long-lasting performance and clean cuts.
  • Suitable for Various Wire Types: Optimally strips PVC, silica gel lines, glass fiber cables, and more.
  • Multiple Voltage Options: Available in both 220V and 110V to suit different power requirements.
  • Robust and Reliable Design: Built with high-quality components for long-term, dependable operation.

Detailed Functionality:

The WPM-MAX1-8 Full Automatic Computer Wire Stripping and Cutting Machine streamlines the wire preparation process. Once the desired parameters (cutting length, stripping lengths) are programmed into the machine's control system, it automatically feeds, cuts, and strips the wires to the specified dimensions. The powerful motor and precise mechanics ensure consistent and accurate results at high speeds. The long stripping length capability allows for a wider range of applications, and the high output rate makes it ideal for mass production.

Specification:

  • Model Number: WPM-MAX1-8
  • Name: Automatic wire cutting and stripping machine
  • Function: Cutting and stripping
  • Cutting Length: 1-9999mm
  • Stripping Length: Front: 100mm; Rear: 100mm
  • Voltage: 220V/110V
  • Power Rate: 800W
  • Cutting Tolerance: ±(0.2 + 0.002 * L) mm
  • Cutting Stripping Wire Core Section: 0.1-25mm²
  • Optimal Stripped Wire: PVC, silica gel line, Glass fiber cables, etc.
  • Blade Material: Hard tungsten steel
  • Output: L = 100 mm, 3000-8000 PCS/h
  • Weight: 50KG
  • Dimension: 400mm * 515mm * 345mm (LWH)

Applications:

This high-performance machine is ideal for processing wires and cables for a wide range of applications, including:

  • Manufacturing of wire harnesses for various industries
  • Production of computer and electronic cables
  • Preparation of power cords and cables
  • Processing wires for automotive applications
  • And any other high-volume wire cutting and stripping needs.

Why Choose the WPM-MAX1-8 Full Automatic Computer Wire Stripping Cutting Machine?

The WPM-MAX1-8 offers a powerful, efficient, and fully automatic solution for cutting and stripping wires up to 25mm². Its high output rate, long stripping length capability, and precise operation make it an invaluable asset for businesses looking to maximize their wire processing efficiency and reduce labor costs.

Contact Us Today for a Quote!

Optimize your wire processing with the WPM-MAX1-8 Full Automatic Computer Wire Stripping Cutting Machine. Contact us today to learn more and request a personalized quote. Please specify your preferred voltage (220V or 110V) when inquiring.

Keywords: Automatic wire cutting machine, automatic wire stripping machine, computer wire stripping machine, cable stripping machines, copper stripping machine, high-speed wire stripper, large wire stripping machine, 25mm2 wire stripper, WPM-MAX1-8.
