Automatic Wire Crimping and Water Seal Insertion Machine WPM-078H
Automatic Wire Crimping and Water Seal Insertion Machine WPM-078H Thumb

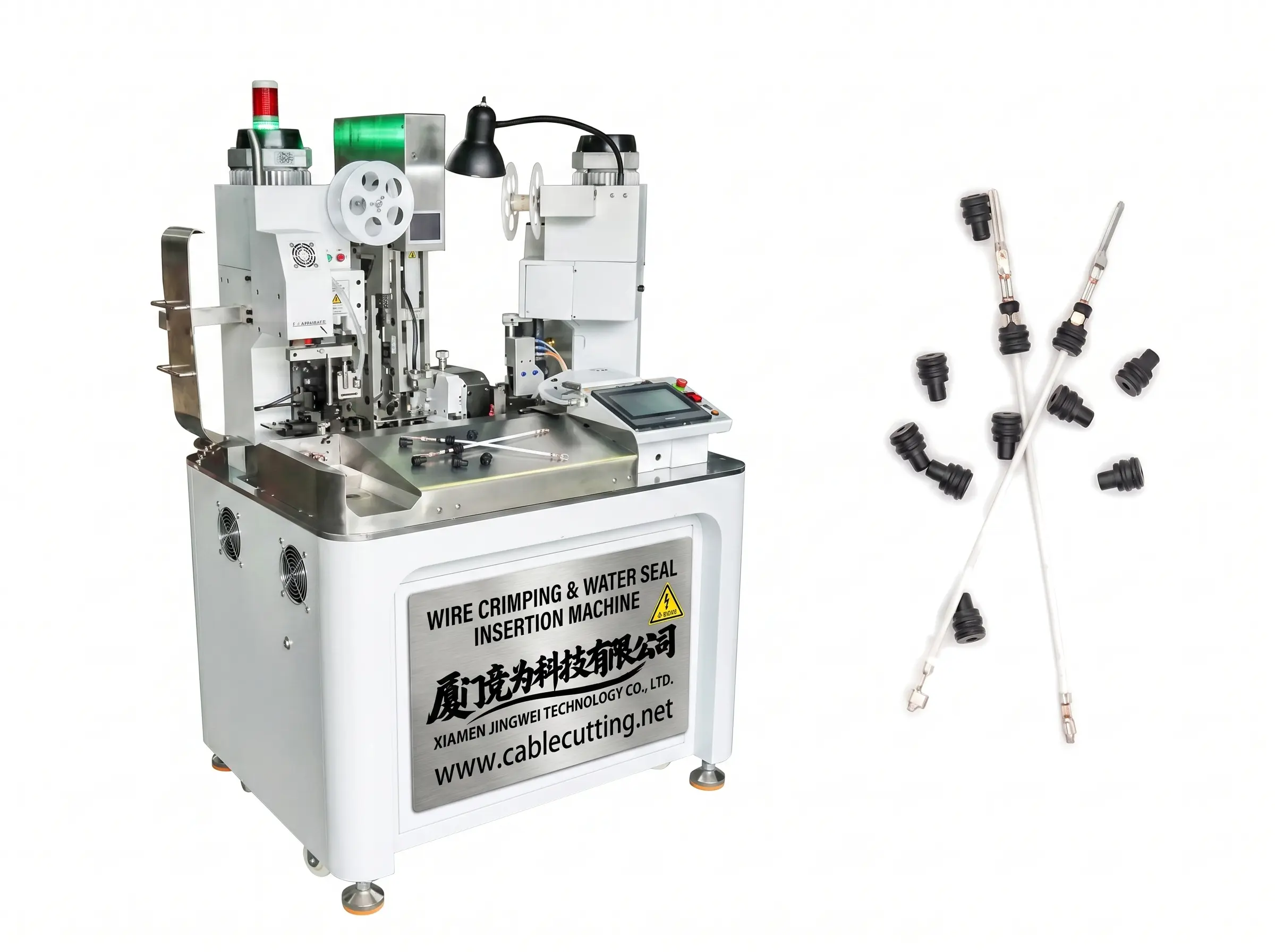

Automatic Wire Crimping and Water Seal Insertion Machine WPM-078H

  • Model No: WPM-078H

  • Automate wire crimping and water seal insertion with the Automatic Wire Crimping and Water Seal Insertion Machine WPM-078H. This machine integrates both processes, providing waterproof wire terminations with reliable sealing. Ideal for waterproof wire connections and harsh environment applications. Achieve waterproof wire terminations with automated crimping and water seal insertion!

  • Inquiry now

Detailed description

Automatic Wire Crimping & Water Seal Insertion Machine for Waterproof Connections

This automatic wire crimping and water seal insertion machine is a highly efficient and reliable solution for producing waterproof wire connections. This advanced machine automates the process of crimping terminals on both sides of a wire and inserting water seals in a single, seamless operation.

The machine features an intelligent system that automatically feeds water seals using a vibration plate, ensuring a consistent supply for uninterrupted production. The water seal is precisely inserted onto the wire before the terminals are crimped, guaranteeing a secure and effective waterproof seal.

Key Features and Advantages:

  • Fully Automatic Operation: Automates wire cutting, stripping, crimping, and water seal insertion.
  • Both Sides Processing: Capable of crimping terminals on both ends of the wire.
  • Automatic Water Seal Feeding: Utilizes a vibration plate for consistent and reliable water seal supply.
  • Water Seal Insertion Before Crimping: Ensures proper sealing and a high-quality waterproof connection.
  • High Production Capacity: Achieves a capacity of 2000-3000 pieces per hour (for a wire length of 150mm).
  • Wide Wire Range: Processes wires from 0.3-2.5 sqmm, equivalent to AWG28# to AWG14#.
  • Customizable Cutting Length: Handles wire lengths from 45mm up to 3000mm (customizable).
  • High Cutting Accuracy: Achieves a cutting accuracy of ±0.5mm + cutting length x 0.2%.
  • Adjustable Stripping Length: Stripping length can be adjusted from 0.5mm to 8mm (customizable).
  • Versatile Applicator Compatibility: Suitable for OTP applicators, European applicators, and Korea applicators.
  • Adjustable Crimping Stroke: Features a standard 30mm crimping stroke with an optional 40mm stroke available.
  • Consistent Air Pressure: Operates with a stable air pressure of 5-6 kgf.

Detailed Functionality:

This automatic wire processing machine begins by cutting the wire to the specified length. The insulation is then precisely stripped from both ends of the wire. Simultaneously, the vibration plate automatically feeds the water seals. The machine then inserts the water seals onto the wire ends before proceeding to crimp the desired terminals onto one or both ends, depending on the application requirements. This integrated process ensures accurate placement of both the water seal and the terminal, resulting in a high-quality, waterproof wire connection.

Applications:

This wire crimping and water seal insertion machine is specifically designed for applications requiring waterproof electrical connections, including:

  • Automotive wiring harnesses
  • Motorcycle and marine wiring
  • Outdoor lighting and electrical systems
  • Waterproof connectors and cable assemblies
  • Industrial equipment exposed to moisture
  • And any other application where a reliable waterproof seal is essential.

Why Choose This Wire Crimping & Water Seal Insertion Machine?

This machine offers a highly efficient and reliable solution for producing waterproof wire connections. By automating the entire process, including water seal insertion, it significantly reduces labor costs and increases production speed while ensuring consistent quality and a reliable waterproof seal. Its wide wire range, customizable options, and compatibility with various applicators make it a versatile choice for diverse manufacturing needs.

Technical Specifications:

  • Power: AC220V/50/60Hz
  • Functions: Wire cut, both ends stripping, one side/both sides crimping and inserting cable water seal
  • Capacity: 2000pcs-3000pcs/h (L=150MM)
  • Wire Range: 0.3-2.5sqmm, AWG28#-AWG14#
  • Cutting Length: 45-3000mm (can be customized)
  • Cutting Accuracy: ±0.5mm + cutting length x 0.2%
  • Stripping Length: 0.5-8mm (can be customized)
  • Suitable Applicator: OTP applicator, European applicator, and Korea applicator
  • Crimping Stroke: 30mm (40mm for optional)
  • Air Pressure: 5-6 kgf

Contact Us Today for a Quote!

Ensure reliable waterproof wire connections with our automatic wire crimping and water seal insertion machine. Contact us today to learn more and request a personalized quote. Discuss your specific wire and water seal requirements for optimal machine configuration.

Keywords: Wire Crimping Machine, Water Seal Insertion Machine, Automatic Wire Crimping, Waterproof Wire Connection Machine, Wire Processing Machine, Both Sides Crimping Machine, Vibration Plate Water Seal Feeder.
