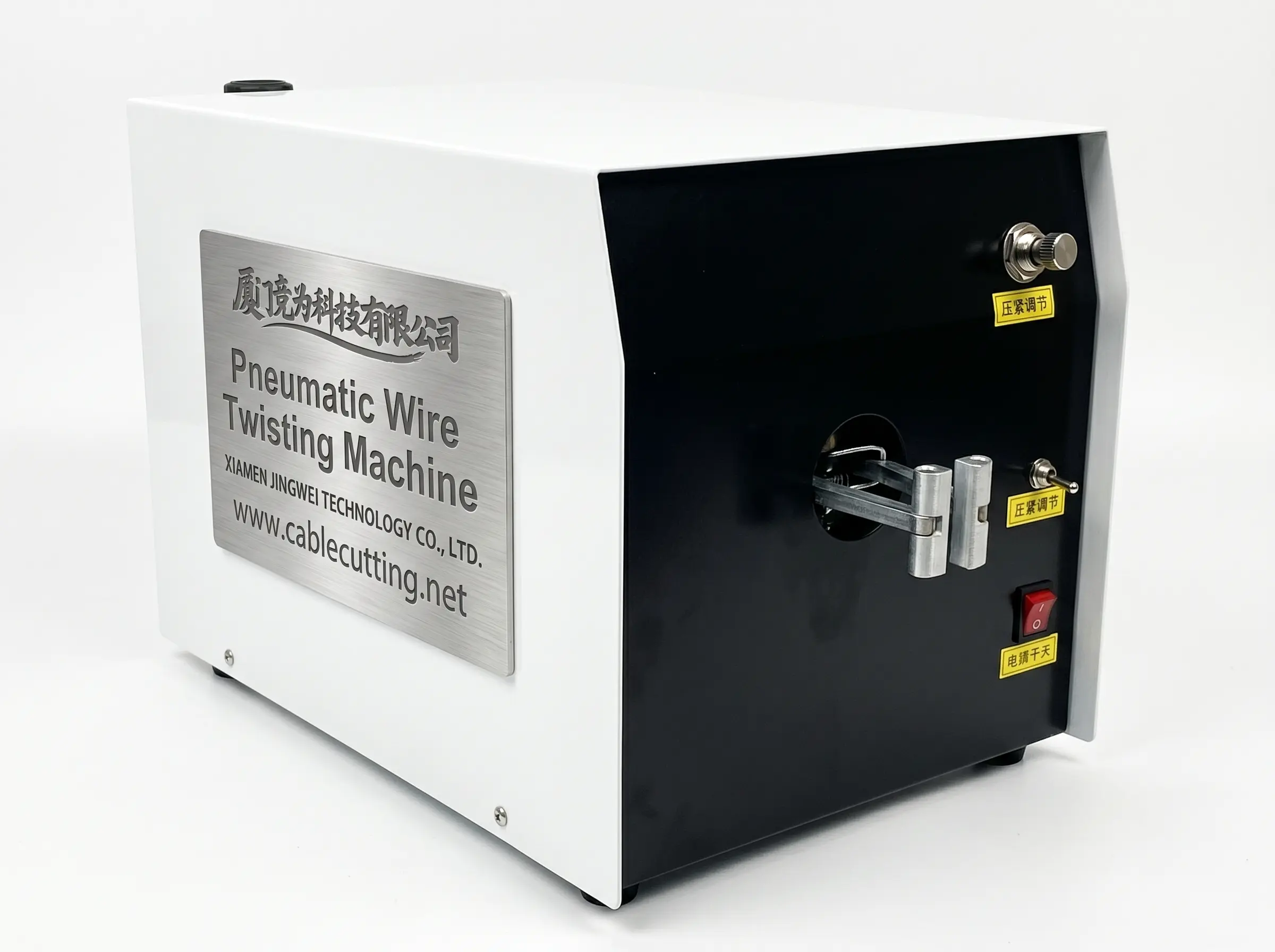

Wire Twisting Machine WPM-19
Wire Twisting Machine WPM-19
  • Wire Twisting Machine WPM-19

  • Model No: WPM-19

  • Twist wires efficiently with the Wire Twisting Machine WPM-19. This machine provides efficient wire twisting for secure and reliable wire connections. Ideal for wire termination and improved connection reliability. Get dependable wire twisting for secure electrical connections!

  • Inquiry now
Detailed description

Automatic Telescopic Wire Twisting Machine for Ground, Braided & Isolation Wires

Effortlessly Twist Wires with Pneumatic Gripping and Foot Pedal Control

Our Automatic Telescopic Wire Twisting Machine is designed to completely replace manual wire twisting for all kinds of ground wires, braided wires, and isolation wires. This efficient machine features an automatic gripping hand controlled by pneumatics, which opens automatically upon air source connection. Operation is simple: just hold the wires in place and lightly press the footswitch to complete the twisting operation. This machine is an upgraded version offering enhanced features for faster and more consistent wire twisting.

Key Features and Benefits:

  • Automated Wire Twisting: Replaces manual twisting for ground, braided, and isolation wires, significantly increasing efficiency.
  • Pneumatic Gripping Hand: Features an automatic gripping hand controlled by air pressure for secure and effortless wire holding.
  • Exposed Gripper Design: The automatic gripper has an exposed design, making it easy to place even scattered copper wires.
  • No Elastic Clamping Adjustment Needed: Automatically adapts to different wire diameters without requiring manual adjustment of elastic clamping.
  • Upgraded Gas-Electric Twisting Machine: This model represents an upgraded version with enhanced functionality.
  • New Automatic Cable Pulling Device: Includes a new automatic cable pulling device, reducing the learning curve for new operators.
  • Adjustable Chuck Opening Size: The opening size of the chuck can be easily adjusted to accommodate different wire bundle sizes.
  • Adjustable Clamping Force: The clamping force of the chuck can be increased by adjusting the number of springs (up to 5 to 6).
  • Simple Foot Pedal Operation: Twisting is initiated by a simple press of the footswitch, allowing for hands-free operation.
  • High Twisting Speed: Achieves a fast twisting speed of 1400 circles per second for rapid processing.
  • Adjustable Twisting Length: Offers an adjustable twisting length from 5 to 80mm, with a customizable option up to 150mm.
  • Wide Wire Range Compatibility: Suitable for wires ranging from 0.1 to 2 mm² in cross-sectional area.
  • Compact and Lightweight: With dimensions of L340×W190×H170mm and a weight of 12KG, the machine is space-saving and portable.

Detailed Functionality:

The Automatic Telescopic Twisting Machine utilizes pneumatic control for its gripping mechanism. Once an air source is connected (1.5-2.5 kg/cm²), the gripper automatically opens, allowing for easy placement of wires. The operator then holds the wires within the gripper and steps on the footswitch to initiate the twisting process. The twisting speed is a rapid 1400 circles per second, and the twisting length can be adjusted between 5 and 80mm (or customized up to 150mm). The chuck's opening size and clamping force can also be adjusted to accommodate various wire types and bundle sizes. The addition of an automatic cable pulling device further simplifies the operation.

Detailed Specifications:

  • Air Pressure: 1.5-2.5 kg/C㎡
  • Power: AC 220V 50Hz 10W
  • Twisting Speed: 1400 circle/s
  • Twisting Length: 5—80mm (150mm customizable)
  • Wire Range: 0.1-2(m㎡)
  • Dimension: L340×W190×H170mm
  • Weight: 12KG

Applications:

This automatic telescopic twisting machine is ideal for twisting:

  • Ground wires in various electrical systems.
  • Braided wires used for shielding or grounding.
  • Isolation wires in electronic and electrical assemblies.
  • Any other types of wires requiring secure and consistent twisting.

Why Choose Our Automatic Telescopic Twisting Machine?

Our Automatic Telescopic Twisting Machine offers a significant upgrade from manual wire twisting. Its pneumatic gripping, foot pedal operation, adjustable parameters, and high twisting speed provide an efficient, consistent, and user-friendly solution for a wide range of wire types. The addition of the automatic cable pulling device further simplifies operation, making it an excellent choice for businesses looking to improve productivity and reduce manual labor.

Contact Us Today for a Quote or Customization Options!

Streamline your wire twisting process with our Automatic Telescopic Twisting Machine. Contact us today to learn more about this efficient solution and discuss your specific requirements or customization needs for twisting length.

Keywords: Automatic wire twisting machine, wire twister, ground wire twisting machine, braided wire twisting machine, isolation wire twisting machine, pneumatic wire twister, foot pedal wire twister, automatic telescopic twisting machine, high-speed wire twister.
