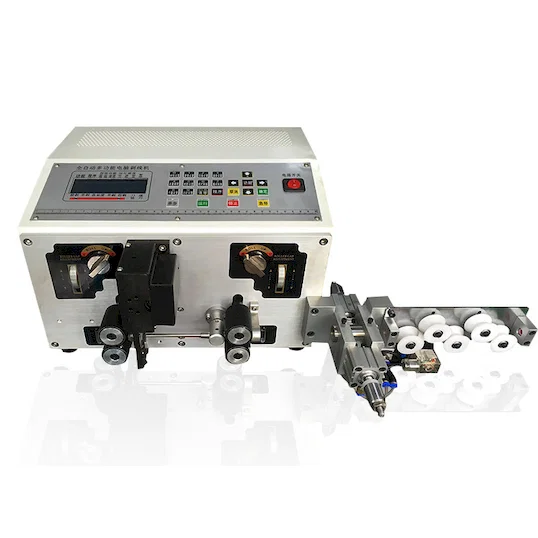

Wire Cutting and Stripping Machine (Middle Stripping) WPM-0-4M
Model No: WPM-0-4M
Achieve middle stripping on wires with the Wire Cutting and Stripping Machine (Middle Stripping) WPM-0-4M. This machine cuts and strips wires with middle stripping capability, providing specialized wire preparation for specific connection types. Ideal for middle stripping applications and specialized wire processing. Get dedicated middle stripping capability for specialized wire preparation with this machine!
Precision Wire Cutting & Stripping Machine for Small Wires with Middle Stripping Function - Model WPM-0-4M
The WPM-0-4M Automatic Wire Cutting and Stripping Machine is a specialized tool designed for processing smaller wires ranging from 0.1 to 4.5mm². This efficient machine can precisely cut wires to specific lengths while simultaneously stripping the insulation. It offers versatile stripping options including full strip, partial strip, and stripping at different parts of the wire. Its standout feature is the middle open window stripping function, which ensures the wire remains securely in place without slipping during the stripping process. Safety is paramount with the WPM-0-4M, and an optional plastic protection shell is available for enhanced operator safety. Additionally, an automatic wire feeding machine can be integrated to further streamline production.
Key Features and Benefits:
Ideal for Small Wires: Specifically designed for processing wires with a cross-section of 0.1-4.5mm².
Versatile Stripping Options: Capable of full strip, partial strip, and stripping at various positions along the wire.
Specialized Middle Stripping: Features a precise middle open window stripping function that prevents wire slippage.
Simultaneous Cutting and Stripping: Cuts wire to the desired length and strips insulation in one efficient operation.
High Output Rate: Achieves a high production rate of 3000-8000 pieces per hour (for L=100mm).
Precise Cutting Length Adjustment: Allows for cutting lengths from 1 to 9999mm.
Adjustable Stripping Lengths: Offers front-end stripping up to 15mm and rear-end stripping up to 35mm.
High Precision: Ensures accurate cutting with a tolerance of ±(0.2 + 0.002 * L) mm.
Durable Blade Material: Equipped with hard tungsten steel blades for long-lasting performance.
Safety Protection: Designed with safety in mind, and an optional plastic protection shell is available.
Optional Automatic Wire Feeding: Can be integrated with an automatic wire feeding machine for increased automation.
Detailed Functionality:
The WPM-0-4M Automatic Wire Cutting and Stripping Machine efficiently processes small wires by first cutting them to the programmed length. It then precisely removes the insulation according to the selected stripping mode. The machine supports full stripping (removing all insulation from the ends), partial stripping (removing a specific length of insulation from the ends), and stripping at different parts of the wire. The unique middle open window stripping function allows for removing insulation from a specific section in the middle of the wire without cutting the ends, and its design ensures the wire doesn't slip during this process, guaranteeing accuracy and quality.
Technical Data:
Model Number: WPM-0-4M
Name: Automatic wire cutting and stripping machine
Cutting Length: 1-9999mm
Stripping Length: Front: 15mm; Rear: 35mm
Voltage: 220V/110V (Optional)
Power Rate: 300W
Cutting Tolerance: ±(0.2 + 0.002 * L) mm
Cutting Stripping Wire Core Section: 0.1-4.5mm²
Optimal Stripped Wire: PVC, silica gel line, Glass fiber cables, etc.
Blade Material: Hard tungsten steel
Output: L = 100 mm, 3000-8000 PCS/h
Weight: 35KG
Dimension: 390 x 350 x 255mm
Applications:
This machine is ideal for processing smaller wires used in:
Electronics manufacturing
Appliance wiring
Automotive electronics
Toy manufacturing
Lighting fixtures
And other applications requiring precise cutting and stripping of small wires, including middle stripping.
Why Choose the WPM-0-4M Wire Cutting and Stripping Machine?
The WPM-0-4M offers a precise and efficient solution for processing small wires, with a particular strength in its middle open window stripping capability that prevents wire slippage. Its versatility in handling full, partial, and multi-part stripping, combined with its high output and available safety and automation accessories, makes it an excellent choice for businesses needing to process smaller gauge wires with specific stripping requirements.
Optional Accessories:
Plastic Protection Shell (available for enhanced safety)
Automatic Wire Feeding Machine (available for increased automation)
