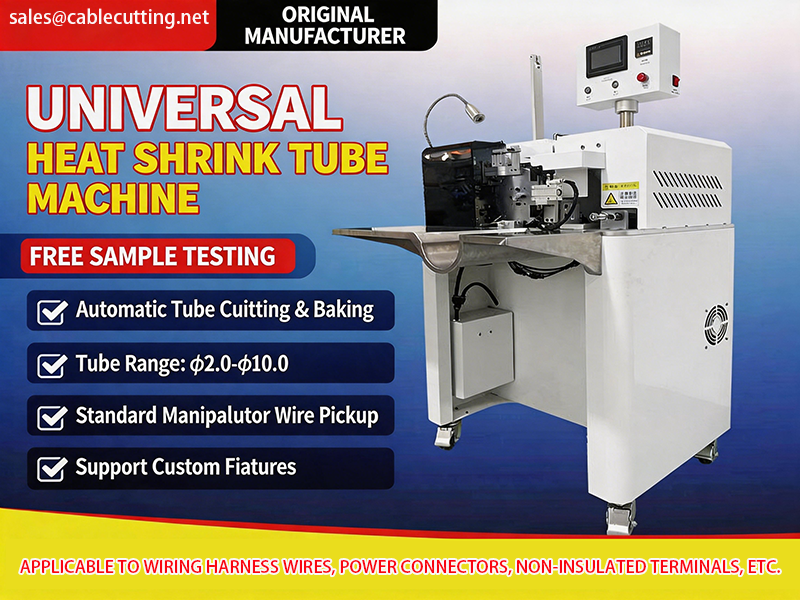

Universal Heat Shrink Tubing Baking Machine JW-100ST-01

Universal Heat Shrink Tubing Baking Machine JW-100ST-01

Name: Universal Heat Shrink Tubing Baking Machine JW-100ST-01
Brand: CoilingBinding
SKU: JW-100ST-01
Availability: InStock
Rating: 5 (1 reviews)

Model No: JW-100ST-01
Specifications
Universal Heat Shrink Tubing Baking Machine JW-100ST-01
Model JW-100ST-01
Input Voltage 220V-AC
Frequency 50/60HZ
Rated Power 1350W
Display 4.3 inch Color TFT
Operation Cycle 2.2 seconds
Operation Mode Passive
Control System PLC/Touch Screen
Tubing Compatibility φ1.0-φ6.5 (customizable above φ7.0)
Baking Length 4MM-50MM (with optional jig)
Baking Temperature 200℃-380℃ (adjustable)
Air Pressure 5.5/6.5KPa
Operating Temperature 0℃-50℃
Storage Temperature -20℃-60℃
Operating Humidity 10%RH~90%RH (non-condensing)
Cooling Method Forced Air Cooling
Dimensions L500×W640×H1300mm
Weight 78KG
Inquiry now

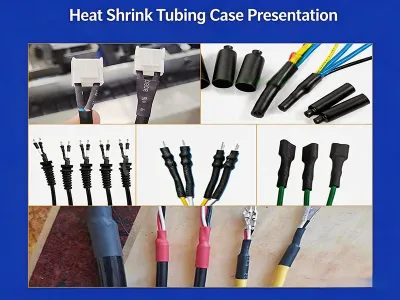

Universal Heat Shrink Tubing Baking Machine JW-100ST-01
1. Industrial automation PLC and HMI control, simple operation, stable performance and high efficiency.
2. Automatic feeding of heat shrink tubing, baking length can be set freely, and welding position can be adjusted by positioning device.
3. Capacity: 700-2500 terminals/hour (depending on manual loading speed).
4. High compatibility, can process various specifications of wires by replacing jigs.

Item	Parameter
Model	JW-100ST-01
Input Voltage	220V-AC
Frequency	50/60HZ
Rated Power	1350W
Display	4.3 inch Color TFT
Operation Cycle	2.2 seconds
Operation Mode	Passive
Control System	PLC/Touch Screen
Tubing Compatibility	φ1.0-φ6.5 (customizable above φ7.0)
Baking Length	4MM-50MM (with optional jig)
Baking Temperature	200℃-380℃ (adjustable)
Air Pressure	5.5/6.5KPa
Operating Temperature	0℃-50℃
Storage Temperature	-20℃-60℃
Operating Humidity	10%RH~90%RH (non-condensing)
Cooling Method	Forced Air Cooling
Dimensions	L500×W640×H1300mm
Weight	78KG

Product Features
1. All series are equipped with automatic manipulator for wire picking (for standard wires only).
2. Digital temperature control with heating device abnormality monitoring. Automatic protection when air pressure is too low to extend service life.
3. Prevent parameter setting errors, system one-key recovery function.

What is the maximum production capacity of the JW-100ST-01 Heat Shrink Tubing Baking Machine?

The JW-100ST-01 offers a high production capacity of 700 to 2500 terminals per hour, depending on the operator's manual loading speed. This makes it ideal for high-volume industrial wire processing, ensuring efficiency and consistent output.

How does the PLC control system improve the operation of this heat shrink tubing baking machine?

The JW-100ST-01 features an industrial automation PLC and HMI control system with a 4.3-inch color TFT display, simplifying operation through intuitive touch screen controls. This ensures stable performance, high efficiency, and allows for easy adjustment of parameters like baking length and temperature, while also providing system one-key recovery to prevent setting errors.

What types and sizes of wires can the JW-100ST-01 process?

The machine is highly compatible, processing tubing diameters from φ1.0 to φ6.5, with customization available for sizes above φ7.0. It supports baking lengths from 4MM to 50MM (using an optional jig) and can handle various wire specifications by simply replacing jigs, making it versatile for different industrial applications.

What safety features does the JW-100ST-01 include to protect the machine and operator?

The JW-100ST-01 includes digital temperature control with heating device abnormality monitoring, automatic protection when air pressure is too low to extend service life, and a system one-key recovery function to prevent parameter setting errors. These features enhance operational safety and ensure reliable, long-term performance.

Can the baking temperature and length be adjusted for different applications on the JW-100ST-01?

Yes, the JW-100ST-01 offers fully adjustable baking temperature from 200°C to 380°C and baking length from 4MM to 50MM (with optional jig). The PLC and touch screen control allow for precise, flexible settings to accommodate various heat shrink tubing requirements, ensuring optimal results for each application.
