Enhance tape wrapping with pull wire functionality using the Tape Wrapping Machine with Pull Wire WPM-303K. This machine incorporates pull wire for precise tape application and controlled wrapping. Ideal for specialized tape wrapping applications and precise control. Get enhanced tape wrapping precision with pull wire functionality!

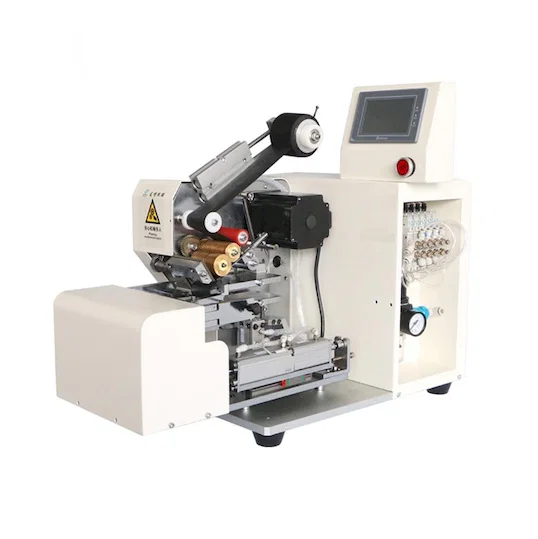

Introducing the WPM-303K, a highly adaptable and efficient taping wrapping machine featuring a convenient pull-wire mechanism. Also known as a Winging Machine and Automatic Tape Winding Machine, this machine is designed for both spot and continuous taping of various wires and cables, ensuring a professional and secure wrap every time.
Engineered for Flexibility and Precision:
The WPM-303K is ideal for applying tape to a wide range of wire harnesses and cables, offering both spot taping for specific points and continuous taping for longer sections. Its pull-wire design provides added convenience and control during the wrapping process.
Key Features and Benefits:
Dual Taping Methods: Supports both spot taping for focused wrapping and continuous taping for extended coverage.
Wide Tape Compatibility: Compatible with various tape materials without release paper, including Flannel tape, acetate tape, electrical tape, and polyester tape.
High-Quality Wrapping: Ensures a flat, wrinkle-free tape application with a consistent 1/2 overlap for cloth tapes, providing optimal insulation and securement.
Adjustable Taping Density: Allows for precise control over the tightness and density of the tape wrap.
Customizable Pull-Wire Length: Standard pull-wire length is 1,050mm, with options for customization to accommodate longer wire harnesses.
Adjustable Speed: Features a host speed ranging from 300 to 2,500 revolutions per minute, continuously adjustable to suit different taping requirements.
Versatile Tape Width: Accepts tape widths from 5mm to 25mm, with customization available for other sizes.
Standard Tape Inner Hole Sizes: Compatible with tape rolls having inner hole diameters of Ф37mm and Ф32mm.
Model: WPM-303K
Technical Specifications:
Feature
Specification
Wire Pulling Length
1,050mm (longer can be customized)
Taping Density
Adjustable
Taping Method
Spot taping, continuous taping
Applicable Tape
Flannel tape, acetate tape, electrical tape, polyester tape, etc.
Tape Width
5-25mm (other sizes need to be customized)
Tape Inner Hole Size
Ф37, Ф32
Host Speed (ret/min)
300-2,500 continuously adjustable
Weight
36KG
Power Supply
AC220V/DC24V 50/60HZ
Dimension (LxWxH)
1,470mm380mm280mm
Enhanced Control with Pull-Wire Mechanism:
The pull-wire feature of the WPM-303K provides operators with enhanced control over the taping process, allowing for precise placement and tension of the tape, especially beneficial for spot taping applications.
Wide Range of Compatible Tapes:
This machine offers excellent versatility by accommodating various tape materials commonly used in wire harness assembly, ensuring you can use the most suitable tape for your specific needs.
Consistent and Professional Wrapping Results:
The WPM-303K is designed to deliver consistently high-quality wrapping, ensuring a flat finish without wrinkles and a precise 1/2 overlap for cloth tapes. This results in a professional and durable wrap that meets industry standards.
Adjustable Parameters for Diverse Applications:
The ability to adjust both the taping density and the host speed allows you to fine-tune the machine's performance to match the specific requirements of different wire harnesses and tape materials.
Ideal for:
Automotive wire harness manufacturing
Electronics assembly
Appliance wiring
Industrial cable processing
And any application requiring precise and versatile wire and cable taping.
Streamline your wire and cable taping process with the versatile and efficient WPM-303K Pull-Wire Taping Wrapping Machine. Contact us today for a quote and to learn more about how this machine can benefit your production line!
