The WPM-003A Shielding Wire Twisted Machine offers an easy-to-use and efficient solution for tightening the braided shielding of various wires, including braided wires themselves. This machine is designed for simple operation and completely replaces manual twisting methods (retractable twisted wire clip thread type). Featuring an automatic clip hand with an exposed design, it simplifies the process of dispersing and placing copper wires. The elastic clamping force adapts to different wire sizes without requiring manual adjustments. Equipped with an automatic drawing device, the WPM-003A ensures smooth twisting, stable quality, and is particularly user-friendly for novice operators, allowing them to quickly adapt to the task. The machine boasts an open-source, automatic wire-twisting chuck. Once the wire is peeled, the strands are automatically clamped, and upon activating the footswitch, the automatic clamp handle secures the wire, the twisting mechanism rotates, and the automatic pull device retracts. The speed of the automatic pullback device can be easily adjusted using the control button located on the upper right corner of the machine.
Key Features and Benefits:
-
Easy and Simple Operation: Designed for user-friendly operation, requiring minimal training.
-
Automatic Braided Wire Tightening: Efficiently tightens the braided shielding of various wires.
-
Replaces Manual Operation: Completely automates the wire twisting process, eliminating the need for manual twisting.
-

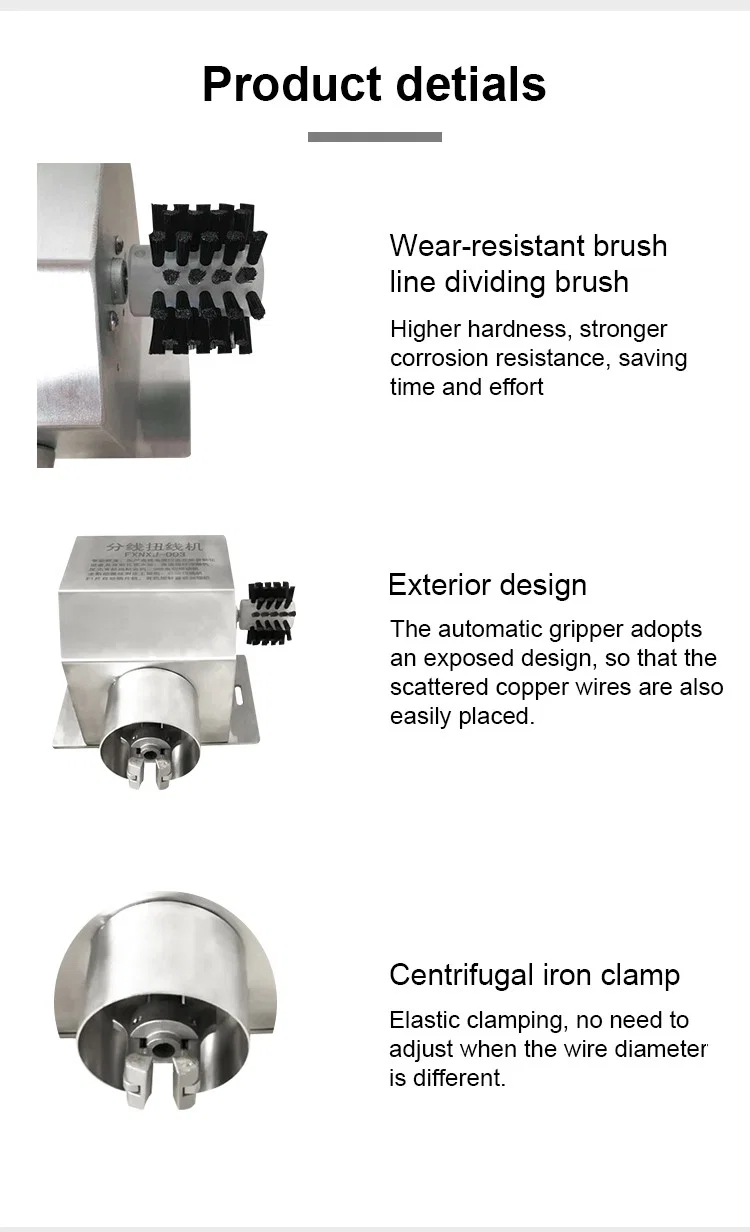

Automatic Clip Hand Design: Features an exposed automatic clip hand for easy wire placement and dispersal.
-
Self-Adjusting Clamping Force: The elastic clamping force automatically adapts to different wire sizes without manual adjustment.
-
Automatic Drawing Device: Ensures smooth twisting and stable quality.
-
User-Friendly for Novices: Designed for easy adaptation by new operators.
-
Open-Source Automatic Chuck: Features an open-source, automatic wire-twisting chuck for seamless operation.
-
Foot Switch Control: Activated by a convenient foot switch.
-
Automatic Pullback Device: Automatically retracts after twisting.
-
Adjustable Pullback Speed: The speed of the automatic pullback device can be easily adjusted.
-
Suitable for Various Wires: Can handle a variety of wire types.
Detailed Functionality:
The WPM-003A Shielding Wire Twisted Machine automates the process of tightening the braided shielding of wires. The operator inserts the peeled wire into the open-source automatic chuck. Upon pressing the foot switch, the machine automatically clamps the wire, twists the shielding to the desired tightness, and then the automatic pullback device retracts, completing the process. The adjustable pullback speed allows for fine-tuning based on the wire type and desired outcome.
Detailed Specifications:
-
Model: WPM-003A
-
Weight: 3kg
-
Power: 60W
-
Voltage: AC220V 50Hz / AC110V 60Hz (Customizable)
-
Twisting Length: 5-60mm
Applications:
This machine is ideal for:
-
Tightening the braided shielding of shielded wires in various electronic applications.
-
Processing braided wires for improved conductivity and termination.
-
Preparing wires for soldering or other connection methods.
-
Use in wire harness manufacturing and assembly.
Why Choose the WPM-003A Shielding Wire Twisted Machine?
The WPM-003A offers a significant improvement over manual wire twisting. Its automatic operation, ease of use, adjustable settings, and ability to handle various wire types make it an invaluable tool for increasing efficiency and ensuring consistent quality in your wire processing tasks. Whether you are an experienced professional or a novice, this machine is designed to simplify and speed up your wire twisting operations.
Contact Us Today for a Quote!
Upgrade your wire processing capabilities with the WPM-003A Shielding Wire Twisted Machine. Contact us today to learn more about this efficient and user-friendly solution and request a personalized quote. Please specify your voltage requirements (AC220V or AC110V) when inquiring.
