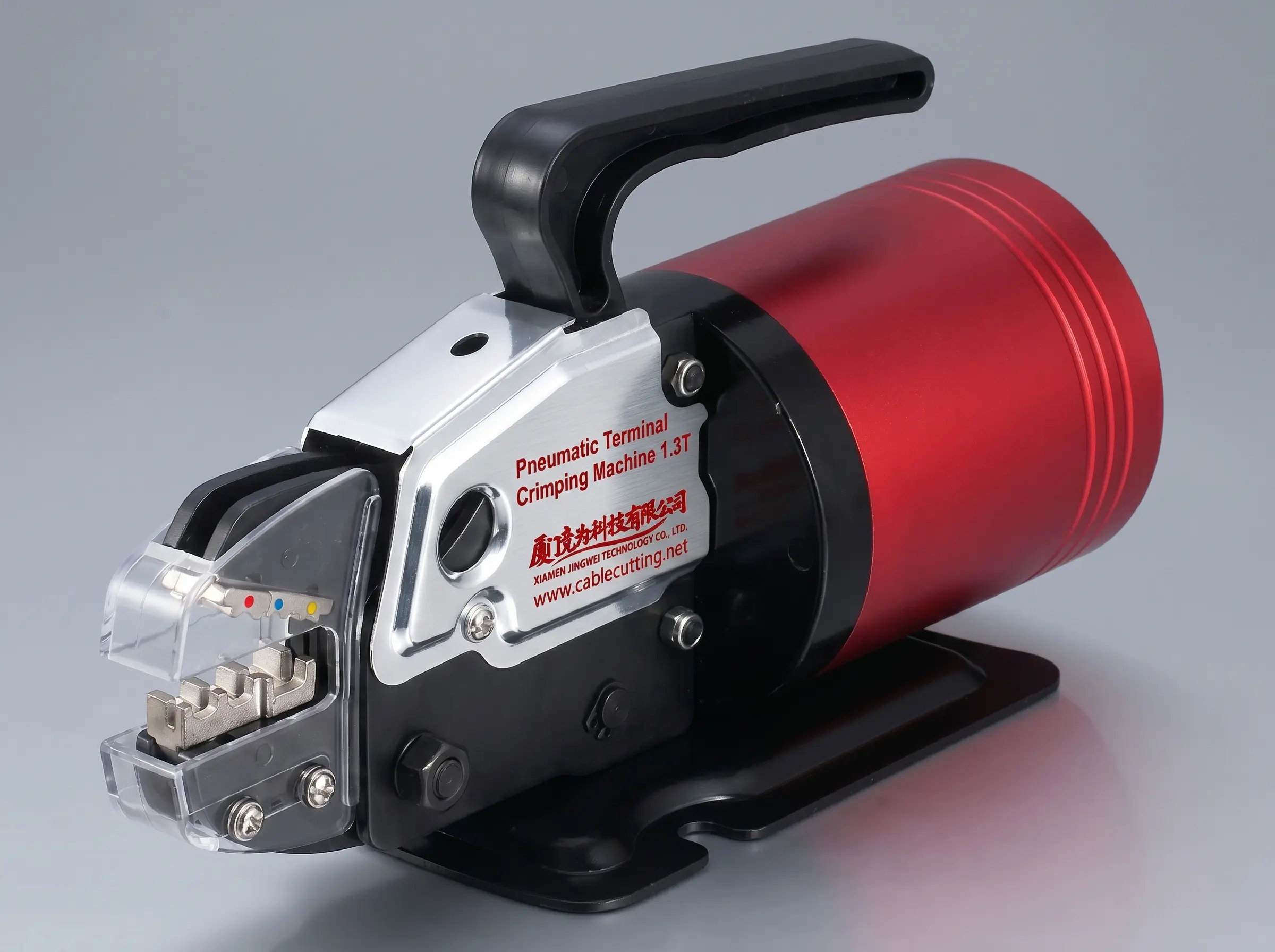

Pneumatic Wire pressing pliers WPM-5ND

High-Speed & Precise Pneumatic Terminal Crimping Machine with Interchangeable Dies (Model WPM-5ND)

The WPM-5ND Pneumatic Terminal Crimping Machine, also known as Pneumatic Wire Pressing Pliers, is a highly efficient and precise tool designed for high-volume terminal crimping. Utilizing a double action standard cylinder drive, this machine delivers significant pressing force and high pressing velocity, ensuring both efficiency and top-notch quality in every crimp. It is ideally suited for applications requiring a substantial amount of terminal connections.

This machine offers excellent compatibility with various crimping fixtures, similar to manual hand tools. Our company provides a wide range of crimping fixtures for different terminal styles, available for separate purchase.

Key Features and Advantages:

• High-Speed & Efficient: Double action cylinder provides rapid and efficient crimping cycles.
• Powerful Crimping Force: Delivers significant force for secure and reliable terminal connections.
• High-Quality Crimps: Ensures consistent and high-quality terminal crimping results.
• Suitable for High-Volume Production: Ideal for applications requiring a large quantity of terminal connections.
• Versatile with Interchangeable Fixtures: Compatible with a wide range of crimping fixtures (dies) for various terminal styles (available separately).
• Broad Application Range: Suitable for numerous industries and applications requiring wire termination.
• High Precision: Ensures accurate and consistent crimping for optimal electrical connections.
• Economical & User-Friendly: Offers a cost-effective solution with simple and intuitive operation.
• Extremely Low Maintenance: Designed for minimal maintenance requirements, reducing downtime.
• Ultra-Quick Changeover: Allows for fast and easy switching of crimping dies for different terminals.
• Micro-Adjust Capabilities: Provides fine-tuning options for precise crimping results.

Detailed Functionality:

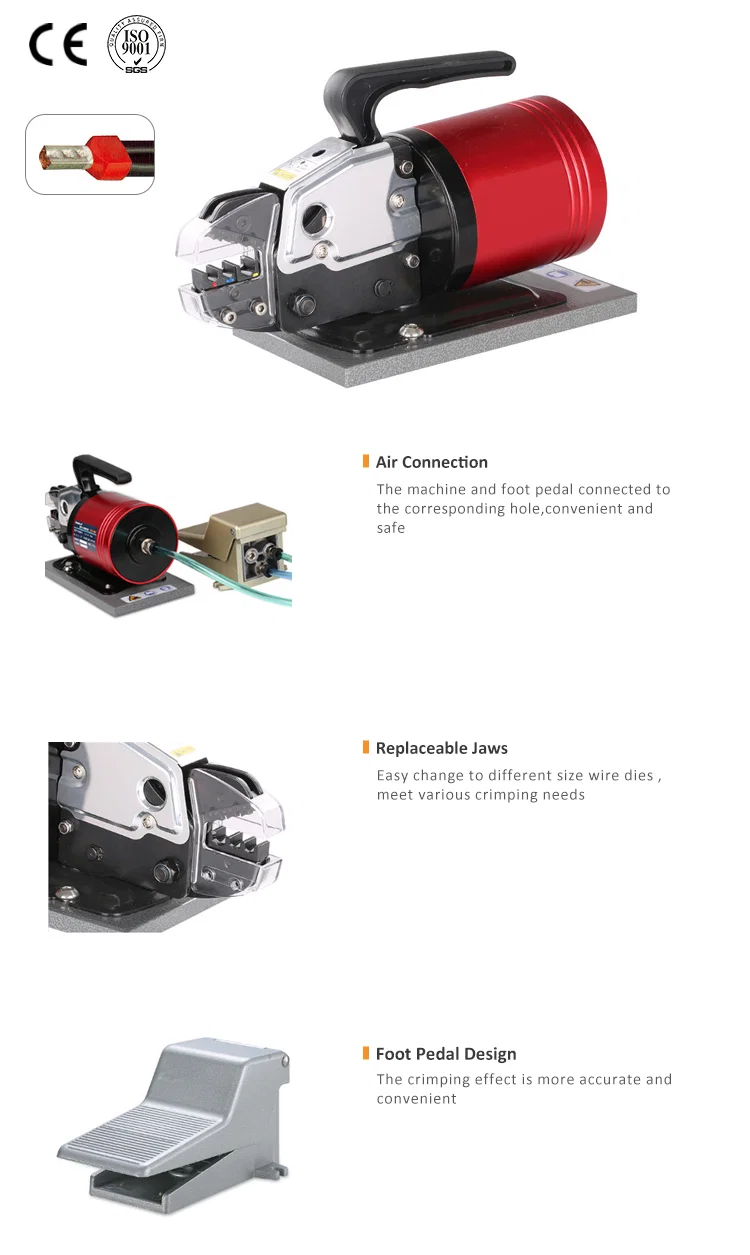

The WPM-5ND Pneumatic Terminal Crimping Machine is powered by a double action standard cylinder, which ensures a powerful and rapid crimping process. The operator simply positions the wire and terminal within the appropriate crimping fixture (die), and upon activation (typically via a footswitch), the machine swiftly and accurately crimps the terminal. The compatibility with various interchangeable crimping fixtures allows this machine to handle a wide array of terminal types.

Also Introducing the HC-01 Pneumatic Terminal Crimping Machine:

The Pneumatic Terminal Crimping Machine offers similar benefits and is specifically designed for crimping many kinds of terminals simply by changing the dies. This versatility makes it an excellent choice for workshops or production lines dealing with diverse terminal types.

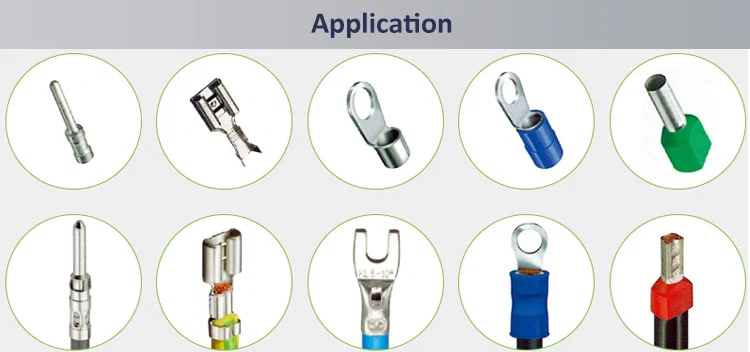

Applications:

These pneumatic terminal crimping machines are widely used in various industries, including:

• Electronics manufacturing
• Automotive wiring harnesses
• Appliance assembly
• Industrial control systems
• Telecommunications
• And any other application requiring efficient and reliable wire termination.

Why Choose These Pneumatic Terminal Crimping Machines?

The WPM-5ND  Pneumatic Terminal Crimping Machines offer significant advantages over manual crimping tools, providing increased speed, accuracy, and consistency. Their robust design, coupled with features like interchangeable dies and user-friendly operation, makes them valuable assets for any production environment requiring efficient and high-quality wire termination. The low maintenance design further contributes to reduced operational costs.

Technical Specifications (General):

• Operation: Pneumatic
• Drive System (WPM-5ND): Double Action Standard Cylinder
• Output Force (WPM-5ND): High (specific force depends on the cylinder)
• Compatibility: Wide range of interchangeable crimping fixtures/dies
• Control: Typically operated by a footswitch (not explicitly stated but implied)
• Maintenance: Extremely Low
• Changeover: Ultra-Quick Die Changeover
• Adjustment: Micro-Adjust Capabilities
• Model (HC-01): Specifically designed for crimping many kinds of terminals with die changes
• Air Pressure Range: (Specify if known)
• Dimensions: (Specify if known)
• Weight: (Specify if known)

Contact Us Today for a Quote!

Upgrade your wire termination process with our high-speed and precise Pneumatic Terminal Crimping Machines. Contact us today to learn more and request a personalized quote. Be sure to inquire about our wide selection of compatible crimping fixtures/dies for various terminal styles. Please specify whether you are interested in the WPM-5ND or HC-01 model, or both.
