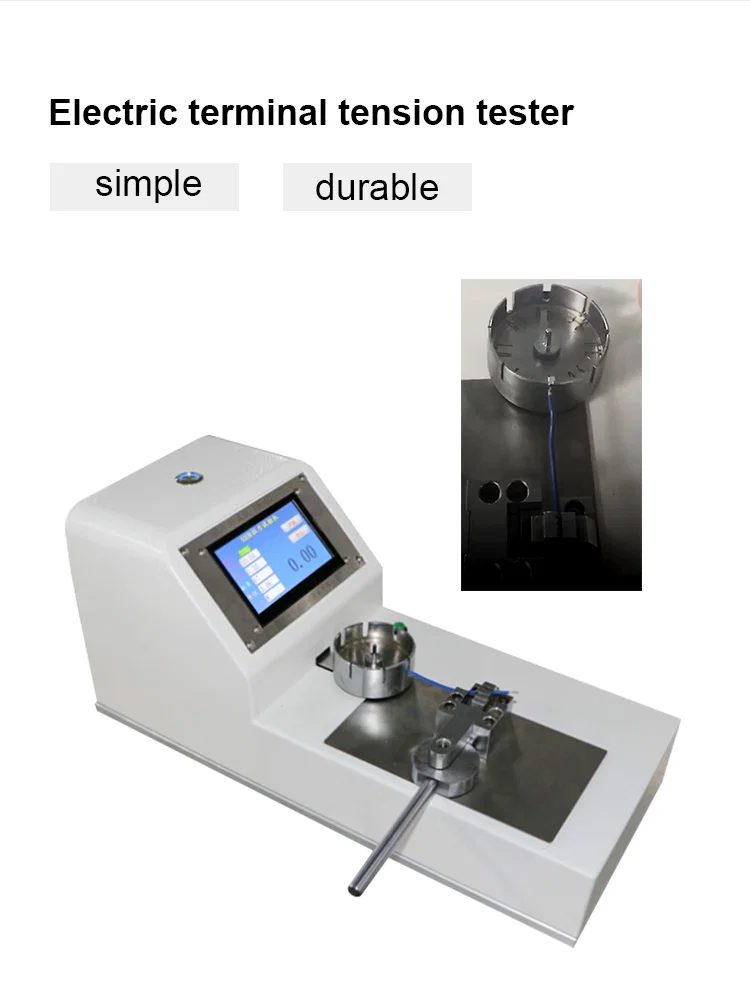

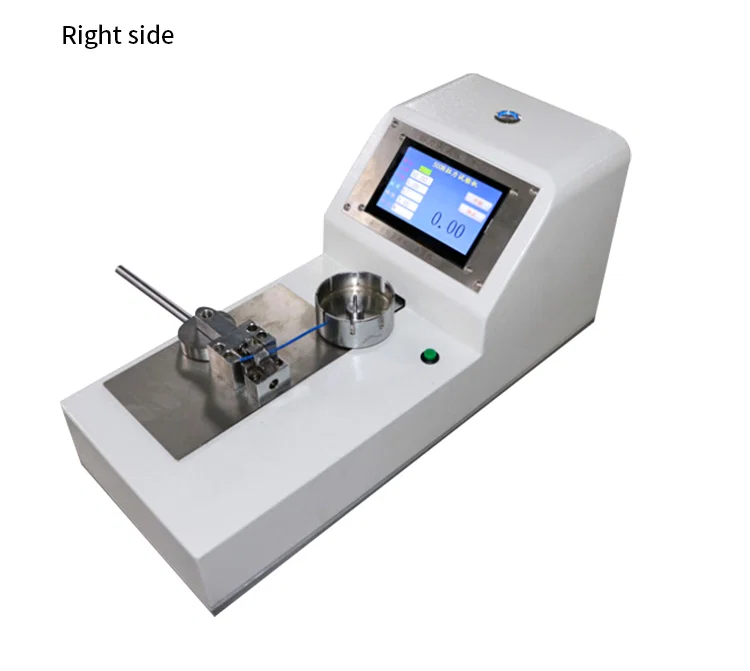

Test electric terminal tension with the Electric Terminal Tension Tester TF-52. This tester measures the tension force of electric terminals, ensuring quality and reliable connections. Ideal for electric terminal quality control and tension testing. Ensure electric terminal connection integrity with dedicated tension testing!
High-Precision Electric Terminal Tension Tester for Wiring Harness and Connector Pull-Out Force Testing
Unlock Unwavering Quality Control with Our Advanced Electric Terminal Tension Tester
In today's demanding manufacturing landscape, ensuring the integrity and reliability of electrical connections is paramount. Our cutting-edge Electric Terminal Tension Tester is meticulously engineered to provide precise and consistent measurement of the pull-out force of various wiring harnesses and terminal connectors. This essential instrument empowers manufacturers to maintain the highest quality standards, prevent costly failures, and guarantee the safety and performance of their products.
Engineered for Accuracy, Speed, and Efficiency

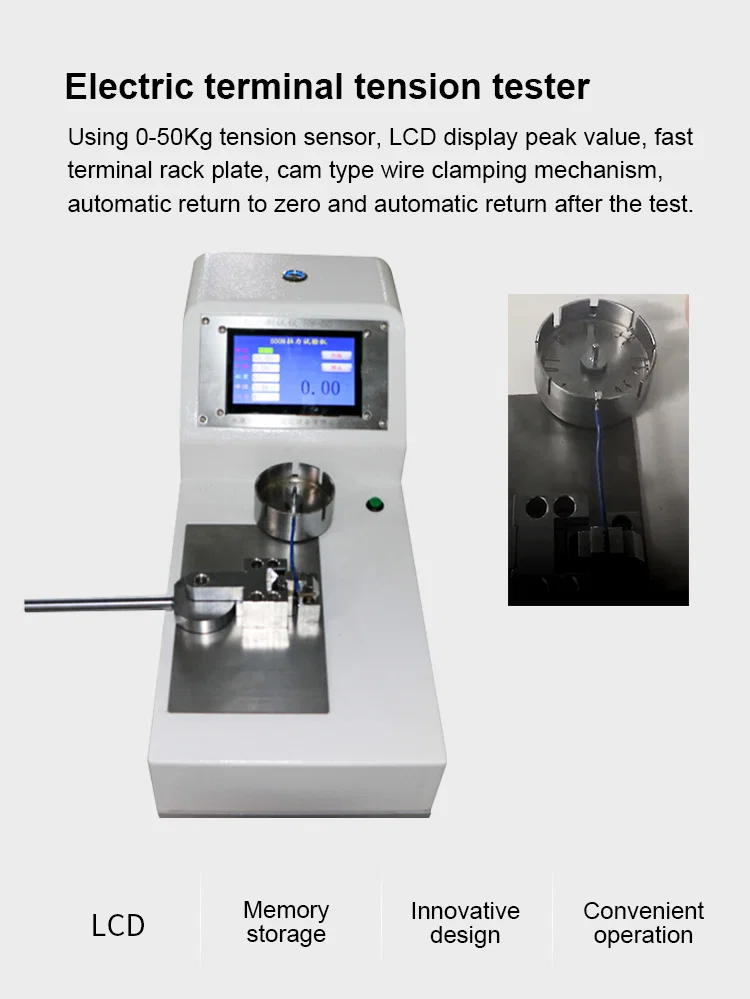

This state-of-the-art Terminal Tension Tester is packed with features designed to streamline your testing processes and deliver dependable results every time. At its core, a highly accurate 0-50KG tension sensor provides precise force measurements, ensuring you can confidently evaluate the strength of your connections.
The intuitive LCD peak value display clearly shows the maximum force achieved during the test, allowing for easy and unambiguous data acquisition. This is crucial for identifying potential weak points and ensuring connections meet stringent specifications.
Efficiency is key in any production environment, which is why our tester is equipped with a fast terminal rack plate. This innovative feature facilitates quick and easy loading and unloading of samples, minimizing downtime and maximizing throughput.
Furthermore, the integrated cam-type wire clamping mechanism provides a secure and reliable grip on a wide range of wire types and sizes. This robust clamping system ensures that the force is applied directly to the terminal or connector without slippage, leading to more accurate and repeatable test results.
Automated for Seamless Operation
Our Electric Terminal Tension Tester is designed for effortless operation. The automatic return to zero function ensures that the tester is always ready for the next measurement, eliminating the need for manual adjustments and improving testing efficiency.
The automatic return after the test feature further enhances workflow by automatically retracting the testing mechanism once the peak force has been recorded. This not only speeds up the testing process but also reduces operator fatigue, especially during high-volume testing.
Key Features and Benefits at a Glance:
Precise Force Measurement: Utilizes a high-accuracy 0-50KG tension sensor for reliable results.
Clear Peak Value Display: Intuitive LCD peak value shows the maximum force achieved.
Rapid Sample Handling:Fast terminal rack plate for quick and efficient loading and unloading.
Secure Wire Clamping:Cam-type wire clamping mechanism ensures a firm and slip-free grip.
Automated Efficiency:Automatic return to zero and automatic return after the test streamline operation.
Quick Terminal Chuck: Facilitates fast and easy exchange of various terminal types.
Robust Construction: Built to withstand the demands of industrial environments.
Versatile Application: Ideal for testing the pull-out force of various wiring harnesses and terminals connector.
Enhanced Quality Control: Provides critical data for ensuring the strength and reliability of electrical connections.
Improved Efficiency: Automates key testing steps, saving time and reducing operator fatigue.
Specifically Designed for Pull-Out Force Testing
This machine is primarily and effectively used to test the pull-out force of various wiring harnesses and terminals. By accurately measuring the force required to detach a terminal from a wire or a connector, manufacturers can verify the quality of their crimping, soldering, or other connection methods. This data is vital for ensuring the long-term reliability and performance of electrical systems across a wide range of industries.
Ideal Applications:
Automotive Wiring Harness Manufacturing
Electronics Assembly
Appliance Manufacturing
Telecommunications Equipment Production
Aerospace and Defense Industries
Quality Control Laboratories
Research and Development Facilities
Invest in Quality and Reliability with Our Electric Terminal Tension Tester
Our Electric Terminal Tension Tester is more than just a testing instrument; it's an investment in the quality, reliability, and safety of your products. By providing accurate and efficient pull-out force testing, this machine empowers you to maintain the highest standards and ensure customer satisfaction.
Contact us today to learn more about how our Electric Terminal Tension Tester can optimize your quality control processes and contribute to the success of your business.
