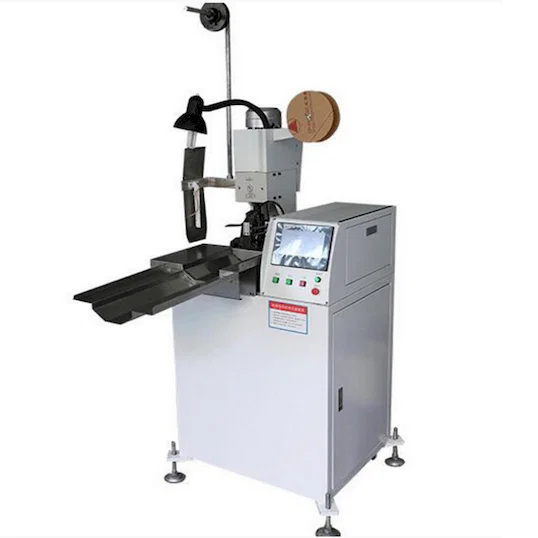

Automatic Double Cable Combined Terminal Crimping Machine WPM-180
Automatic Double Cable Combined Terminal Crimping Machine WPM-180
  • Automatic Double Cable Combined Terminal Crimping Machine WPM-180

  • Model No: WPM-180

  • Crimp terminals on two cables simultaneously with the Automatic Double Cable Terminal Crimping Machine WPM-180. This machine crimps two cables at once, doubling your crimping output and reducing production time. Ideal for high-volume double-cable termination. Double your crimping output with automated double-cable terminal crimping!

  • Inquiry now
Detailed description

High-Efficiency Automatic Cable Combined Terminal Crimping Machine with Intelligent Touch Screen Control

This Cable Combined Terminal Crimping Machine, also known as a Three End Two-Wire Crimping Machine, Wire Cutting Stripping And Crimping Machine, and Fully Crimping Machine, is a state-of-the-art solution designed for high-volume and precise wire processing. Engineered for high efficiency, stable performance, and super intelligence, this machine streamlines your wire harness production with its advanced features.

The machine utilizes an intuitive touch screen operation to control all critical parameters, including cutting length, stripping length, cutter knife values, half stripping values, and terminal crimping speed. This centralized control allows for easy adjustments and ensures optimal processing for various wire specifications. The integration of an electric knife design further enhances efficiency and precision in cutting and stripping operations.

Experience exceptional productivity with a maximum output of 4000-4500 pieces per hour (based on a wire length of 150 mm with 2 crimps), making it an ideal choice for demanding production environments.

Key Features and Advantages:

  • High Efficiency: Maximizes output with a processing speed of up to 4500 pieces per hour.
  • Stable Performance: Engineered for consistent and reliable operation.
  • Super Intelligence: Features advanced touch screen control for precise parameter adjustments.
  • Touch Screen Operation: Centralized control for cutting length, stripping length, cutter knife values, half stripping values, and crimping speed.
  • Electric Knife Design: Enhances efficiency and precision in cutting and stripping.
  • Versatile Functionality: Combines wire cutting, stripping, and terminal crimping in one machine.
  • Easy Parameter Adjustment: Touch screen interface allows for quick and convenient setting of processing parameters.
  • Increased Productivity: High processing speed significantly improves production output.
  • Reduced Labor Costs: Automation minimizes the need for manual operation.
  • Consistent Quality: Precise control ensures uniform and reliable wire terminations.

Detailed Functionality:

This fully automatic cable combined terminal crimping machine integrates wire cutting, stripping, and terminal crimping into a single, efficient process. The operator can easily set the desired cutting length, stripping length, and crimping parameters via the touch screen interface. The electric knife design ensures clean and accurate cutting and stripping of the wire insulation. The machine then precisely crimps the terminals onto the prepared wire ends at the set speed. The intelligent control system ensures synchronized operation of all components, resulting in high-quality and consistent wire terminations at a rapid pace.

Applications:

This high-efficiency cable combined terminal crimping machine is ideal for high-volume production in various industries, including:

  • Automotive wiring harness manufacturing
  • Consumer electronics assembly
  • Appliance manufacturing
  • Industrial control systems
  • And any other application requiring automated wire cutting, stripping, and crimping with high throughput.

Why Choose This Automatic Cable Combined Terminal Crimping Machine?

This machine offers a powerful combination of high efficiency, stable performance, and intelligent control. The user-friendly touch screen interface and precise parameter adjustments ensure optimal processing for various wire specifications. The high productivity and reliable operation make it an excellent investment for manufacturers looking to maximize their output and streamline their wire harness production.

Technical Specifications (Based on provided information):

  • Productivity: 4000-4500 pcs/hour (within 150 mm, 2 crimps)
  • Functions: Wire Cutting, Stripping, Terminal Crimping
  • Control System: Intelligent Touch Screen Control
  • Key Parameter Adjustments: Cutting length, stripping length, cutter knife values, half stripping values, terminal crimping speed
  • Cutting/Stripping Mechanism: Electric Knife Design

Contact Us Today for a Quote!

Boost your wire harness production efficiency with this advanced and intelligent automatic cable combined terminal crimping machine. Contact us today to learn more and request a personalized quote. Discuss your specific wire processing requirements for tailored solutions.

Keywords: Cable Combined Terminal Crimping Machine, Three End Two-Wire Crimping Machines, Wire Cutting Stripping And Crimping Machine, Fully Crimping Machine, Automatic Wire Crimping Machine, High Efficiency Wire Processing, Touch Screen Wire Machine, Electric Knife Wire Stripping.

Applicable wire size

AWG16-AWG28

Cutting Length

45mm-3200mm(Longer wire can be customized)

Cutting accuracy

Cutting length*0.2%

Stripping length

Wire head:10mm tail:14mm

Pressing capacity

1.5Tit can adjust as special demands

Detection device

Detect terminal , wire, insufficient pressure

Voltage

AC220V/50HZ

Air pressure

0.5MPA

Dimension

750*800*1700mm

Weight

400kg
