Enamel copper wire stripping machine WPM-6P
Enamel copper wire stripping machine WPM-6P
  • Enamel copper wire stripping machine WPM-6P

  • Model No: WPM-6P
  • Enamel copper wire stripping machine, copper wire enamel remover machine WPM-6P
    1. This model is usually used for thick copper wire (the stripping effects will be the best between 0.35-5mm diameter)
    2. The stripping head consists of four sticks made of imported tungsten steel with centripetal working;
    3. Widely used to strip enameled wires, especially for the need of removing enamel till the root of the wire;
    4. Suitable for various enamel removal;
    5. Taper of the four sticks is adjustable, and this would help the scrap discharge
    6. Easy to operate and adjust: rotating the screw to adjust for different enameled wire diameters;
    7. Safety shield is equipped with this machine
  • Inquiry now
Detailed description
1. This model is usually used for thick copper wire (the stripping effects will be the best between 0.35-5mm diameter)
2. The stripping head consists of four sticks made of imported tungsten steel with centripetal working;
3. Widely used to strip enameled wires especially for the needs of removing enamel till the root of wire;
4. Suitable for various enamels removal;
5. Taper of the four sticks is adjustable, and this would help the scrap discharge
6. Easy to operate and adjust: rotating the screw to adjust for different enameled wire diameters;
7. Safety shield is equipped with this machine

Specification:


Model

WPM-6P

Copper Wire Diameter

About 0.35-5mm

Dimension

280*200*150MM

Weight

5.5kg

Voltage

220V, 50HZ

Power

120W

Rotation Rate

2800r/Min

Head Cutting Material

Imported Tungsten Cemented Carbide

Stripping Length

5MM-70MM


Here are the main parts of the copper wire stripping machine:
Enamel copper wire stripping machine, copper wire enamel remover machineHere are the core parts of this copper wire enamel-removing machine: the stripping head

Enamel copper wire stripping machine, copper wire enamel remover machine

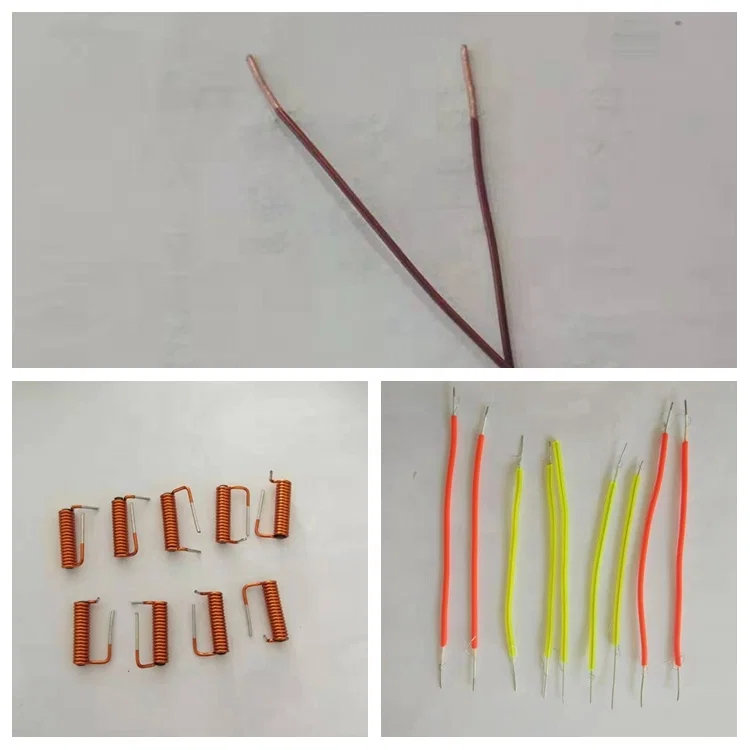

The following picture is for some enamel removal samples, pls have a see:

Enamel copper wire stripping machine, copper wire enamel remover machine
