HDMI Cable Production Procedure

HDMI /USB 3.0/USB 3.1 cable manufacturing process and equipment

Process 1:   Cut and strip the cable

Automatic wire cutting and stripping machine



Process 2:  Trim the Aluminum foil

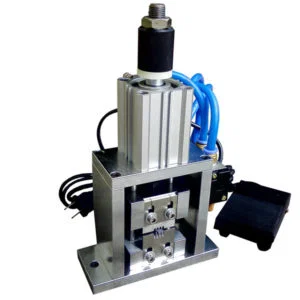

 Vertical Aluminum foil trimming machine



Process 3:  Position the inner wire on the plastic wire claw holder
  Angle type wire traverse machine



Process 4:  Strip the inner wire

 Stripping machine for two side



Process 5:  Tin the inner wire



Process 6:  Assemble the connector with wire



Process 7:  welding the connector

  High frequency welding machine



Process 8:  mold the connector

  Injection molding machine
