Automatic Thread Seal Tape PTFE Teflon Tape Wrapping Machine WPM-1308
Automatic Thread Seal Tape PTFE Teflon Tape Wrapping Machine WPM-1308 Automatic Thread Seal Tape PTFE Teflon Tape Wrapping Machine WPM-1308 Automatic Thread Seal Tape PTFE Teflon Tape Wrapping Machine WPM-1308 Automatic Thread Seal Tape PTFE Teflon Tape Wrapping Machine WPM-1308 Automatic Thread Seal Tape PTFE Teflon Tape Wrapping Machine WPM-1308
  • Automatic Thread Seal Tape PTFE Teflon Tape Wrapping Machine WPM-1308

  • Model No: WPM-1308
  • Thread Seal Teflon/PTFE tape wrapping machine Model WPM-1308 Tape width 5mm, 7mm, 10mm, 14mm
    Weight 70KG
    Size 450*400*560mm
    Working speed 3-5pieces/second (wrap 2-3 circles)
    Type Electric and automatic
    Power 750W
    Voltage 220V
    Pressure 0.6Mpa
    Applicable Teflon tape wrapping for threaded joints, especially for raw tape 1/8 - 1 1/2 inch threaded joint
    Requirement for Teflon tape made of polytetrafluoroethylene dispersion resin
  • Inquiry now
Detailed description
Automatic Thread Seal Tape PTFE Tape Wrapping Machine
This automatic Thread Seal /PTFE tape wrapping machine is suitable for wrapping PTFE tape for all screwed joints, including pipe threads, valve fittings, plumbing fittings, water purifier connectors, hydraulic oil pipe fittings, tracheal joints, and so on. It highly improves production efficiency.
1 Easy to operate, no need for skilled workers, the number of turns and winding speed can be set
2 High efficiency and high quality, no rework and loss
3 Finishing a complete process in an average of 3 seconds
4 5 times faster than the traditional skilled manual operation, 1 hour to produce 600-800 pieces
5 Winding closely and tightly, not easy to fall off
6 The data of the servo drive is accurate, reliable, and stable

Model

WPM-1308

WPM-1309

Tape width

5mm, 7mm, 10mm, 14mm (min.3mm, max.16mm customizable)

Fitting diameter

1/8-2 inches (2.5 inches can be customized)

Working speed

6-7 seconds/pcs (wrap 2-3 circles)

3-5 seconds/pcs (wrap 2-3 circles)

Type

electric and automatic with air source

Voltage

220/110VAC; 50/60Hz

PLC

H1U-0806MT-XP

Motor

servo driver and servo motor

IS620PS5R5I/SMH1-75B30CB-U231Z servo driver and servo motor

Touch screen

EV-043A11-AA

TK6071P

Weight

78KG

Size

72*52*52cm

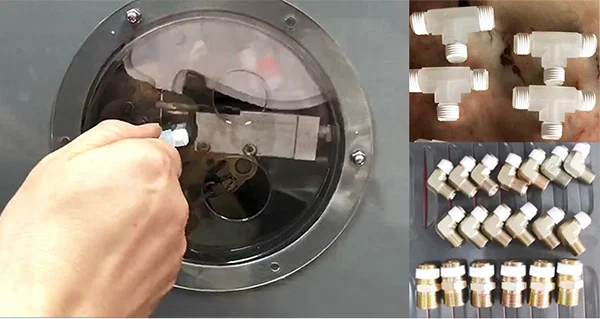

sample display of pipe threads ptfe tape wrapping machine, pipe threads teflon tape wrapping machine, valve fittings teflon tape wrapping machine, screw joints ptfe tape wrapping machine, plumbing fittings teflon tape wrapping machine, water purifier connectorteflon tape wrapping machine, hydraulic oil pipe fittings pipe threads teflon tape wrapping machinepipe threads teflon tape wrapping machinesample display of pipe threads ptfe tape wrapping machine, pipe threads teflon tape wrapping machine, valve fittings teflon tape wrapping machine, screw joints ptfe tape wrapping machine, plumbing fittings teflon tape wrapping machine, water purifier connectorteflon tape wrapping machine, hydraulic oil pipe fittings sample display of pipe threads ptfe tape wrapping machine, pipe threads teflon tape wrapping machine, valve fittings teflon tape wrapping machine, screw joints ptfe tape wrapping machine, plumbing fittings teflon tape wrapping machine, water purifier connectorteflon tape wrapping machine, hydraulic oil pipe fittings sample display of pipe threads ptfe tape wrapping machine, pipe threads teflon tape wrapping machine, valve fittings teflon tape wrapping machine, screw joints ptfe tape wrapping machine, plumbing fittings teflon tape wrapping machine, water purifier connectorteflon tape wrapping machine, hydraulic oil pipe fittings
